Transmission Line Stringing Equipment Hydraulic Puller Cummins Engine 9 Groove Number

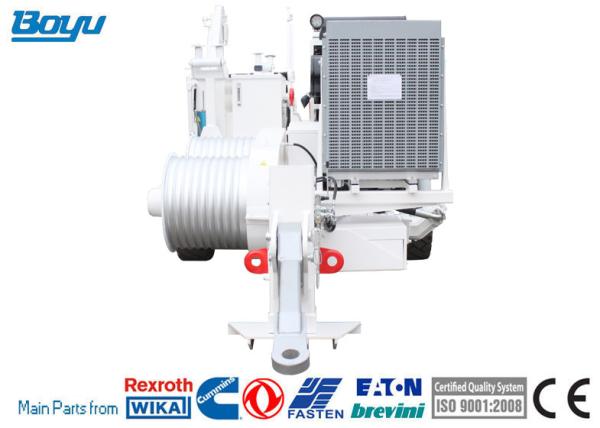

TY150 Stringing Equipment Hydraulic Puller

In tension stringing construction, puller is one indispensable tool of main tools and its performance has direct impact on quality and progress of stringing construction.
Important components of the puller, with reasonable design and high safety coefficient, are selected from international famous professional manufacturers such as German Rexroth, German , American Eton, Italian ATOS; other parts and auxiliary equipment are also selected from domestic excellent products, in addition to strict production management by this company, thereby it effectively guarantees fine performance and reliable quality of the product and wins the flavors of numerous customers.

Main technical performance parameter
Max intermittent pulling force	150kN
Max continuous pulling force	120 kN
Corresponding speed	2.5 km/h
Max continuous tractive speed	5 km/h
Corresponding pulling force	60 kN

Structure parameter
Pulling wheel diameter	600mm
Groove number	9
Max diameter of applicable pulling rope	26mm
Weight	6600kg
Overall dimension (lengthwidthheight)	480023502470 mm
Hoisting mode	single point

Engine
Type	Cummins 6CTA8.3-C260
Model	Straight type six-cylinder pressurizing four-stroke diesel engine
Cylinder diameter * stroke	114*135 mm
Total air output	8.3 L
Rated speed	2200 r/min
Rated power (one hour power)	194 kw
Max torque	1135Nm
Rotary speed when maximum torque	1500 r/min
Fuel consumption rate (bench test)	238g/kw.h
Cooling method	forced air cooling

Drive system
Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.
Cooling mode	forced cooling
Main pump
Model	sloping cam plate bi-directional plunger pump (German Rexroth)
Type	A4VG250EP4DT1/32R-NSF02F021
Hydraulic motor
Model	inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
Type	A2FE180/61W-VZL106
Speed reducer
Model	two-grade planet gear reduction (German Rexroth made by Beijing sole investment plant)
Type	310 L2
Reduction ratio	21.8
Brake response pressure	2.5Mpa

Auxiliary oilway hydraulic system
Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.
System working pressure	12Mpa
Duplex gear pump	1PF2G2-4X/016+014RR20MRL
Fan motor	GM5-12-1FE13-S-20
Hoisting motor	J2K-305
Sleeve extension oil cylinder	3TG110×250
Radiator	B5024
