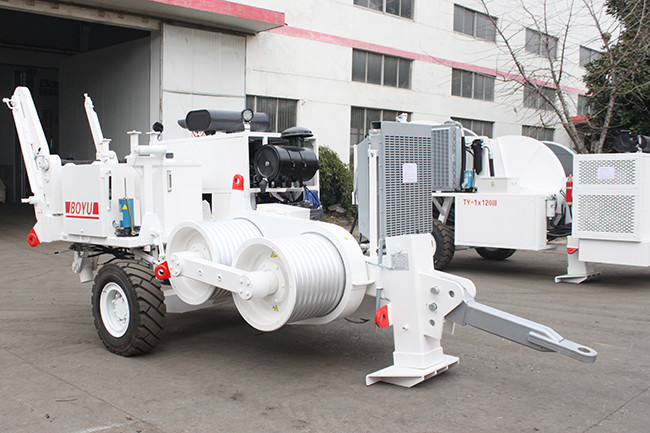

Transmission Line Stringing Equipment TY150 Hydraulic Pullers Max
Intermittent Pulling Force 150kN
Characteristics:
1. The puller is comprised of engine, closed-type hydraulic system,
speed reducer drive system, pulling wheel, coiling mechanism of
pulling rope, operation system and mainframe. The main puller and
coiling mechanism of pulling ropes make up a whole. There is
hydraulic lifting stabilizer in the forepart of frame, double
stabilizer in the rear part, when working, you can adjust them to
working location. The whole machine has compact layout, reasonable
space position and operation convenience.
2. The puller adopts installation mode of two-wheel single spindle
trailer to be convenient for trans-field transportation. Pulling
wheel, engine, hydraulic oil tank and operation board are
reasonably arranged on both sides of main girder to make complete
machine realize single-point hoisting and convenient hoisting
transportation and reduce length of complete machine. The strength
safety coefficient of anchor point is big, safe and reliable.
3. The pulling wheel is treated by special technology, which is
wear-resistant.
4. The pulling wheel can rotate in positive and negative
directions, pull pulling rope and deliver pulling rope, and the
pulling force can be preset and displayed visually from pressure
gauge.
5. The puller is hydraulic drive type, adopts German Rexroth
hydraulic control sloping cam plate variable displacement pump,
inclined-axis hydraulic motor to form closed type circuit hydraulic
drive system. It has advanced technique, power saving, high drive
efficiency, reliable quality and self overload protection function
to avoid damage of hydrodynamic shock and acceleration of oil
temperature rise.
6. Adopt German Rexroth planetary speed reducer with compact
structure and reliable quality.
7. Adopt international advanced hydraulic servo control for pulling
or backing the machine at present and realize smooth regulation and
operation convenience, flexibility and reliability of pulling
speed.
8. Adopt friction plate type wet brake; integrated in planetary
speed reducer; being free of routine maintenance, with spring
brake, hydraulic pressure release, easy operation and rapid
reaction speed; zero clearance brake can be realized, safe and
reliable. In stopped state, conductor-sliding off accident arising
from release of tail rope can be avoided. When the engine flames
out suddenly or fails, the brake owns automatic brake protection
function.
9. The control handle adopts locating design to be convenient for
timely and accurate regulation and control, easy operation and
reducing fatigue strength of operator. The operation board can be
opened directly from the front to be convenient for inspection and
maintenance.
10. Adopt aluminum alloy plate fin radiator. The radiator is
carried out forced cooling through hydraulic motor drive fan, with
good heat radiation effect and long steady operation time, and can
conveniently and in time regulate air output of fan according to
practical environment and working temperature.
11. All kinds of hydraulic filters have by-pass value to protect
the system free from damage.
Performance parameter
| Main technical performance parameter |
Max intermittent pulling force: 150kN Max continuous pulling force: 120 kN Corresponding speed: 2.5 km/h Max continuous tractive speed: 5 km/h Corresponding pulling force: 60 kN |
| Structure parameter |
Pulling wheel diameter: 600mm Groove number: 9 Max diameter of applicable pulling rope: 26mm Weight: 6600kg Overall dimension (length*width*height): 4800*2350*2470 mm Hoisting mode: single point |
| Engine |
Type: Cummins 6CTA8.3-C260 Model: Straight type six-cylinder pressurizing four-stroke diesel
engine Cylinder diameter * stroke: 114*135 mm Total air output: 8.3 L Rated speed: 2200 r/min Rated power (one hour power): 194 kw Max torque: 1135Nm Rotary speed when maximum torque: 1500 r/min Fuel consumption rate (bench test): 238g/kw.h Cooling method: forced air cooling |
Drive system Closed type circuit hydraulic drive system adjusts speed through
hydraulic plunger pump with bi-directional variable displacement,
reduces speed through planet gear and drives pulling wheels to
rotate in positive and negative directions through the first level
gear terminal drive. Cooling mode: forced cooling
Main pump Model: sloping cam plate bi-directional plunger pump (German
Rexroth) Type: A4VG250EP4DT1/32R-NSF02F021
Hydraulic motor Model: inclined-axis bi-directional constant displacement tapered
plunger motor (German Rexroth) Type: A2FE180/61W-VZL106
Speed reducer Model: two-grade planet gear reduction (German Rexroth made by
Beijing sole investment plant) Type: 310 L2 Reduction ratio: 21.8 Brake response pressure: 2.5Mpa |
| Auxiliary oilway hydraulic system |
Open type constant displacement throttle speed governing hydraulic
system is supplied oil by gear pump and controls oil liquor’s
cooling and hoisting tail bracket’s lifting of the whole hydraulic
system through hand operated direction valve and ball valve. System working pressure: 12Mpa Duplex gear pump: 1PF2G2-4X/016+014RR20MRL Fan motor: GM5-12-1FE13-S-20 Hoisting motor: J2K-305 Sleeve extension oil cylinder: 3TG110×250 Radiator: B5024 |
| Electric system |
System voltage: 24V Storage battery: 24V electric starting |
