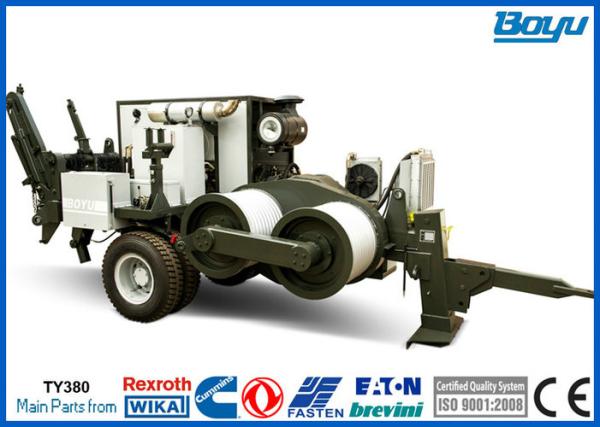

380kN 38Tons Overhead Tension Stringing Equipment Conductor Hydraulic Cable Puller

Quick details:

1. 4-Bundle Conductor Line Stringing Equipment Hydraulic Puller
2. Max rope diameter: 38mm
3. Max pull: 380kN (38Tons)
4. Diesel: Cummins 440kw (590hp)
5. Main pump, motor and speed reducer: German (Rexroth)
6. Tail bracket hoisting motor: American (Eton)
7. Max reel size: 1900mm
8. BOYU Brand

Description

This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.

Engine

1. Diesel 440kw(590hp)
2. Cooling system water
3. Electrical system 24V

Performance

1. Max intermittent pull: 380kN
2. Max continuous pull: 350kN
3. Speed at max pull: 2.5km/h
4. Max speed: 5km/h
5. Pull at max speed: 170kN

Characteristics

1. Bull-wheel diameter: 960mm
2. Groove number: 11
3. Max rope diameter : 38mm
4. Max diameter of coupling: 100mm
5. Max diameter of rope reel: 1900mm
6. Total weight: 13600kg
7. Overall dimension (length*width*height): 6000×2600×2800mm

Configuration

1. Hydraulic dynamometer with set-point and automatic control of maximum pull
2. Hydraulic oil cooling system
3. Control instruments for hydraulic system and diesel engine
4. On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1900
5. Hydraulic front stabilizer
6. Grounding connection point

Main configuration

1. Engine: Cummins
2. Main pump: German Rexroth
3. Main motor speed reducer: German Rexroth
4. Operating handle: German Rexroth
5. Tail bracket hoisting motor: American Eton
6. Hydraulic meter: German

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

1. Lighting system for the trailer
2. Air brake system for the trailer
3. Hydraulic rope clamp for reel change(extra charge)
4. Swivel guide rope roller
5. Trailer for towing at max speed of 30 km/h
6. Extra shaft
7. Digital speed and meter counter

More pictures


Company Introduction
We, Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is a high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Transmission line stringing equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system



Quality Guarantee

We have one year quality guarantee, if internal components go wrong within one year, we will change another for free. We can supply the specific components to the buyers with cost price after warranty period.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

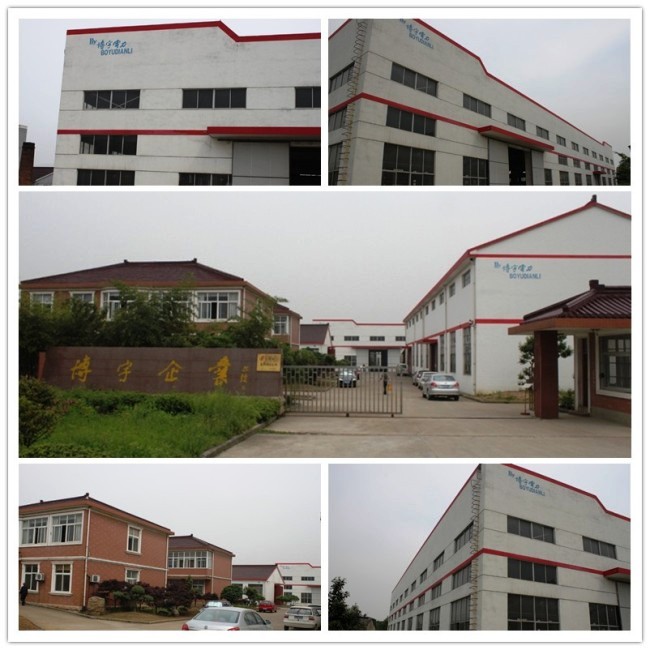

Company
