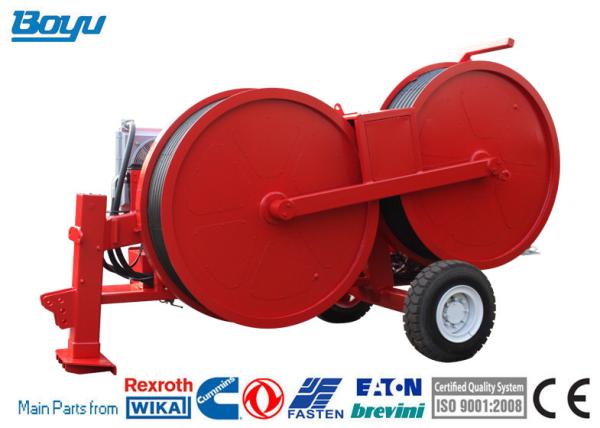

TY1X30D-1800 Hydraulic Cable Tensioner For Transmission Line
Construction With Single Cylinder Diesel Engine
TY1x30D-1800 Hydraulic Tensioner with diesel engine The machine is hydraulically controlled for the tensile force and
complete with quality parts and components such as hydraulic break,
high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient
performance. The hydraulic power unit provides the traction of
conductors at both positive and negative directions. The
single-beam trailer chassis is also adopted, where lifting points
are pre-set for anchoring and temporary anchoring, to achieve a
portable compact integrity easy to be loaded, transported and
transferred. |
Characteristics Bull-wheel diameter: 1800mm Max conductor diameter: 40mm Groove number: 5 Total weight: 3200kg Overall dimension (length*width*height): 4500*2000*2500mm | Performance Max continuous tension: 30kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 15kN Max reverse pulling force: 20kN |
Main configuration Engine: Single cylinder diesel engine Hydraulic pump: Tianjin Parker Main motor: Tianjin Parker Speed reducer: German Rexroth / Italy Brevini Hydraulic meter: German | Engine Single cylinder diesel engine: 18kw(25hp) Electrical system: 12V |
Hydraulic Transmission The machine can realize step less speed
The machine is provided with tension presetting system |
Configuration Hydraulic dynamometers Hydraulic oil cooling system Grounding connection point | Additional Devices Air brake system for the trailer (extra charge) Hydraulic conductor clamps for drum change operations (extra
charge) Swivel guide rope roller Trailer for towing at max speed of 30 km/h |
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery, CE certified.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
►Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
►Our company was founded in 1994, having 27 years rich experience
in this field. Our product sells in distant markets: Sudan, Kenya,
Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is
also very popular in china.
►We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
►We can supply the specific components to the buyers with cost
price after warranty period.
