    118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth

    Ask Lasest Price
    Brand Name : BOYU
    Model Number : TY90TP-24
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

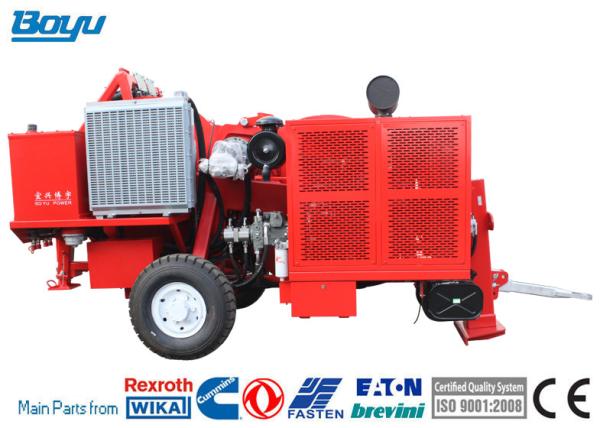

    118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth

    Hydraulic Puller Tensioner Machine For Transmission Line Stringing Equipment 10 Groove Number


    TY90TP Hydraulic Puller-Tensioner

    • The machine is suitable to string one or two ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.

    Characteristics

    • Bull-wheel diameter: 1500mm
    • Max rope diameter: 18mm
    • Groove number: 10
    • Max conductor diameter: 40mm
    • Total weight: 4600kg
    • Overall dimension (length*width*height): 4700×2300×2700mm

    Performance

    Puller

    • Max pull: 90kN
    • Speed at max pull: 2.4km/h
    • Max speed: 5km/h
    • Pull at max speed: 44kN

    Tensioner

    • Max tension: 90kN
    • Max speed: 5km/h

    Engine

    • Diesel: 118kw(158hp)
    • Cooling system: water
    • Electrical system: 24V

    Main configuration

    • Engine: Cummins
    • hydraulic pump: German Rexroth
    • Main motor: German Rexroth
    • speed reducer: German Rexroth
    • Hydraulic meter: German
    • Operating handle: German Rexroth

    Hydraulic Transmission

    • Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

    Configuration

    • Negative self-acting hydraulic brakes
    • Hydraulic dynamometers with set-point and automatic control of maximum pull
    • Hydraulic oil cooling system
    • Digital meter counters
    • Control instruments for hydraulic system and diesel engine
    • Rigid axles for towing at max speed of 30km/h with mechanical parking brake
    • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
    • Hydraulic front stabilizer
    • Grounding connection point

    Additional Devices

    • Lighting system for the trailer
    • 2 hydraulic rope/conductor clamp(extra charge)
    • Swivel guide rope roller
    • Trailer for towing at max speed of 30 km/h
    • Digital speed and meter counter

    118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth


    Customer Support

    Customers are our first priority

    • Our contacts will try their best to solve the problems encountered by customers to ensure that our customers are satisfied without any commitment from you.
    • An introductory course has been planned for all customers who purchase BOYU machines, and we provide free technical support via phone or email.
    • Our customers can also download operation and maintenance videos from our website.
    • We will provide some easily damaged equipment parts to ensure normal operation.
    • If quality problems such as design, manufacturing, functions or procedures occur during the warranty period, Boyu shall bear full responsibility and bear all economic losses caused thereby.
    • If any other quality problems occur during the warranty period, BOYU will provide online video services after receiving notification from the buyer within 24 hours.
    • If there are any major quality problems during the warranty period, Boyu will also provide online video services after receiving notification from the buyer within 48 hours.
    • BOYU will provide the buyer with a lifetime discount price, including materials and spare parts used for system operation and equipment maintenance, and guarantee 7-day express delivery.
