TY2x35 Overhead Line Stringing Equipment Max Continuous Pull 2x35kN
Hydraulic Tensioner

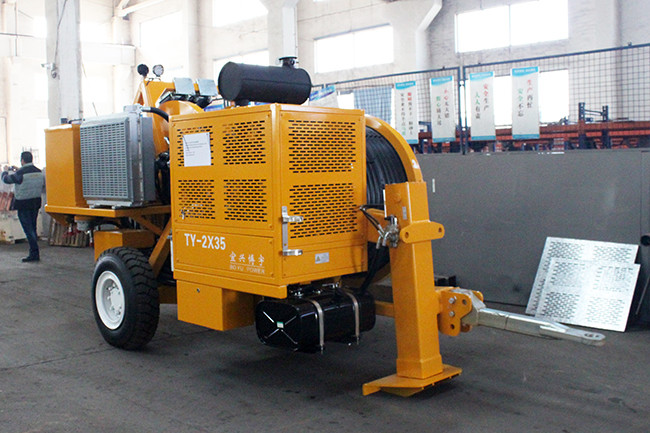

TY2x35 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle
conductor of 630mm2 and below in mountainous and hilly areas, of
twin-bundle conductor of 720mm2 and below in flat lands, and of
conductor 720mm2 in various terrains; besides, it can be used for
tension stringing of OPGW or ADSS optical cable and 500kV haulage
rope in various terrains
| Model | TY2x35 |
Max intermittent pull | 2x40kN |
Max continuous pull | 2x35kN |
Engine | Cummins |
Diesel | 77kw(103hp) |
Performance
Max intermittent pull: 2x40kN
Max continuous pull: 2x35kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 2x20kN
Max reverse pulling force: 2x30kN
Max reverse pulling speed: 5km/h
Characteristics
Bull-wheel diameter: 1300mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 4500kg
Overall dimension (length*width*height): 4300*2250*2700mm
Engine
Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V
Main configuration
Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth / Italy Brevini
Hydraulic meter: German
Operating handle: German Rexroth
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Digital speed and meter counter
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with
hydraulic motor
Additional Devices
Lighting system for the trailer
Air brake system for the trailer (extra charge)
2 hydraulic conductor clamps for drum change operations (extra
charge)
Swivel guide rope roller
Other Models
| Model | Bull-wheel diameter | Max conductor diameter | Groove number | Total weight | Overall damension |
| mm | mm | | kg | mm |
| TY1X7.5 | 1100 | 24 | 1 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 5 | 1920 | 4080*1930*2300 |
| TY1X30D | 1300 | 40 | 5 | 2400 | 4000*1900*2300 |
| TY1X30 | 1300 | 40 | 5 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 5 | 3430 | 4000*2000*2300 |
| TY1X50 | 1300/1500 | 55 | 6 | 2400 | 4000*1900*2300 |
| TY1X60 | 1500 | 40 | 6 | 4800 | 4300*2050*2600 |
| TY1X70 | 1500 | 55 | 6 | 3000 | 4500*2200*2300 |
| TY1X80 | 1850 | 65 | 6 | 5200 | 5520*2100*2850 |
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 |
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 |
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 |
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 |
| TY2X80 | 1850 | 48.75 | 2x6 | 10000 | 5520*2280*2850 |
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 |
| TY4X30 | 1300 | 40 | 4x5 | 11000 | 5900*2300*2500 |
| TY4X50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
