Hydraulic Puller-Tensioner For Overhead Line Stringing Equipment
Max Tension 90kN

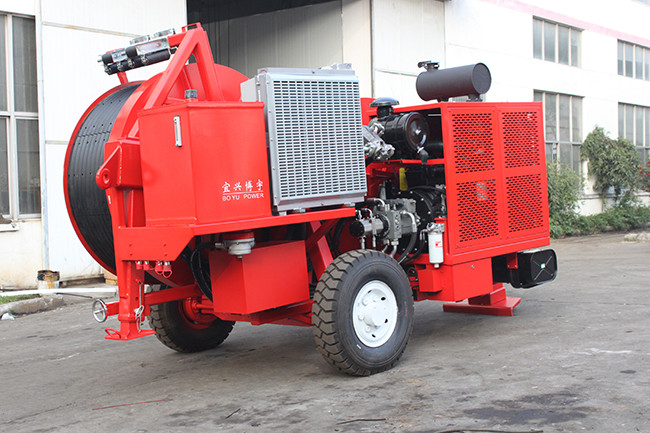

TY90TP Hydraulic Puller-Tensioner |
- The machine is suitable to string one or two ropes or bundled
conductors. The bull-wheel grooves are made of high resistance
interchangeable nylon sectors. The machine is completely
electronically controlled.
|
Performance |
Puller |
Max pull | 90kN |
Speed at max pull | 2.4km/h |
Max speed | 5km/h |
Pull at max speed | 44kN |
Tensioner |
Max tension | 90kN |
Max speed | 5km/h |
Characteristics |
Bull-wheel diameter | 1500mm |
Max rope diameter | 18mm |
Groove number | 10 |
Max conductor diameter | 40mm |
Total weight | 4600kg |
Overall dimension (length*width*height) | 4700*2300*2700mm |
Engine |
Diesel | 118kw(158hp) |
Cooling system | water |
Electrical system | 24V |
Main configuration |
Engine | Cummins |
Hydraulic pump | German Rexroth |
Main motor | German Rexroth |
Speed reducer | German Rexroth |
Hydraulic meter | German |
Operating handle | German Rexroth |
Hydraulic Transmission |
- Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur.
|
Configuration |
- Negative self-acting hydraulic brakes
- Hydraulic dynamometers with set-point and automatic control of
maximum pull
- Hydraulic oil cooling system
- Digital meter counters
- Control instruments for hydraulic system and diesel engine
- Rigid axles for towing at max speed of 30km/h with mechanical
parking brake
- Hydraulic power pack to control up to 2 reel stands with hydraulic
head or 2 reel winders
- Hydraulic front stabilizer
- Grounding connection point
|
Additional Devices |
- Lighting system for the trailer
- 2 hydraulic rope/conductor clamp(extra charge)
- Swivel guide rope roller
- Trailer for towing at max speed of 30 km/h
- Digital speed and meter counter
|
