    Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY2x35-1
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner

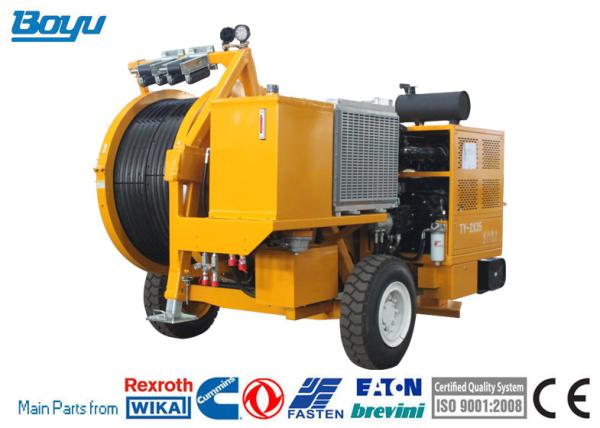

    TY2x35 Overhead Line Stringing Equipment Hydraulic Tensioner With Water Cooling System


    Characteristics

    Bull-wheel diameter

    1300mm

    Max conductor diameter

    40mm

    Groove number

    2x5

    Total weight

    4500kg

    Overall dimension (length*width*height)

    4300*2250*2700mm

    Performance

    Max intermittent pull

    2x40kN

    Max continuous pull

    2x35kN

    Speed at max pull

    2.5km/h

    Max speed

    5km/h

    Pull at max speed

    2x20kN

    Max reverse pulling force

    2x30kN

    Max reverse pulling speed

    5km/h

    Main configuration

    Engine

    Cummins

    Hydraulic pump

    German Rexroth/Dnish Danfoss

    Main motor

    German Rexroth/French Leduc

    Speed reducer

    German Rexroth / Italy Brevini

    Hydraulic meter

    German

    Operating handle

    German Rexroth

    Engine

    Diesel

    77kw(103hp)

    Cooling system

    water

    Electrical system

    24V


    Configuration

    • Hydraulic dynamometers
    • Hydraulic oil cooling system
    • Digital speed and meter counter
    • Grounding connection point
    • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

    Additional Devices

    • Lighting system for the trailer
    • Air brake system for the trailer (extra charge)
    • 2 hydraulic conductor clamps for drum change operations (extra charge)
    • Swivel guide rope roller

    Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner


    Yixing Boyu Electric Power Machinery Co., Ltd was established in 1993. It is a high-tech enterprise in China. It is a professional company engaged in the research and development, production and sales of hydraulic pullers, tensioners, conductors and other transmission line threading equipment and tools. Pulleys, anti-torsion galvanized steel wire ropes and provide customers with accessories and technical services. After years of hard work, Boyu has developed into one of China's largest manufacturers of stringing equipment and tools, and currently offers more than 200 products.


    Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner


    At present our annual output value reaches more than thirty million USD, we provide more than 1000 sets of equipment for customers in the Power System, our products are very popular in China, and our main customers include STATE GRID, CHINA POWER, EETC etc. We also develop business in the International market more than 10 years and more than 50 countries.
