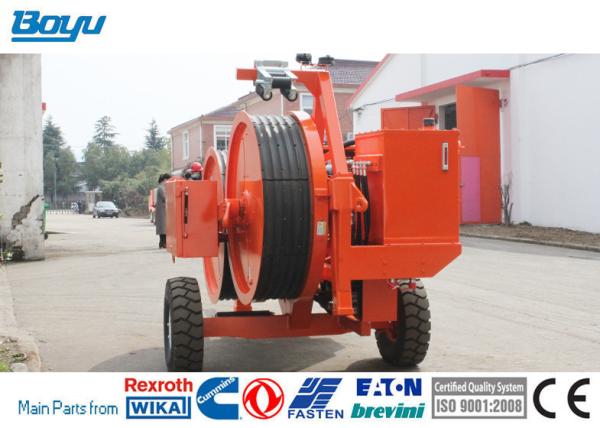

    Deutz Air Cooled Engine Overhead Line Stringing Equipment Hydraulic Tension Machine

    Ask Lasest Price
    Brand Name : BOYU
    Model Number : TY1x40DV
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    Deutz Air Cooled Engine Overhead Line Stringing Equipment Hydraulic Tension Machine

    TY1x40DV Stringing Equipment With Deutz Air Cooled Engine Hydraulic Tension Machine For Overhead Line


    Characteristics

    Bull-wheel diameter: 1300/1500mm

    Max conductor diameter: 40mm

    Max Optical fiber cable diameter: 21mm

    Groove width: 55mm

    Groove number: 5

    Total weight: 2800kg

    Overall dimension (length*width*height): 4200*2000*2500mm

    Structural Style: Single bridge trailer

    Hydraulic power output: Connected hydraulic lead tail car

    Performance

    Max intermittent pull: 45kN

    Max continuous pull: 40kN

    Speed at max pull: 2.5km/h

    Max speed: 5km/h

    Corresponding Tension: 20kN

    Max Reverse Pulling Force: 40kN

    Max Reverse pulling Speed: 3km/h

    Main configuration

    Engine: Deutz air cooled

    Variable pump: French HYDROLEDUC

    Main motor:German Rexroth/French HYDROLEDUC

    Speed reducer: German Rexroth / Italy BONFIGLIOLI

    Main hydraulic valve parts: German Rexroth/American SUN/Italy ATOS

    Engine

    Diesel: 56kw(73hp)

    Cooling system: Air cooled

    Electrical system: 24V

    Hydraulic Transmission

    The machine can realize step less speed

    The machine is provided with tension presetting system

    Configuration

    Hydraulic dynamometers

    Hydraulic oil cooling system

    Mechanical meter counters

    Grounding connection point

    Hydraulic power pack to control drum stands with hydraulic motor

    Additional Devices

    Lighting system for the trailer

    Air brake system for the trailer(extra charge)

    Hydraulic conductor clamps for drum change operations (extra charge)

    Swivel guide rope roller

    Trailer for towing at max speed of 30 km/h

    Digital speed and meter counter


    Deutz Air Cooled Engine Overhead Line Stringing Equipment Hydraulic Tension Machine

    Deutz Air Cooled Engine Overhead Line Stringing Equipment Hydraulic Tension Machine


    Company Profile

    Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994. It is a Chinese high-tech enterprise with more than 27 years of experience. It is a company specializing in the research and development, manufacturing and sales of hydraulic transmission systems and other transmission line engineering machinery. . Puller, tensioner, guide wheel, anti-twist galvanized steel wire rope and provide customers with accessories and technical services. After years of hard work, Boyu has developed into one of China's largest manufacturers of stringing equipment and tools, and currently has more than 200 products.
