Overhead Line Stringing Equipment TY2x80 Hydraulic Cable Tensioner
Max Tension 2x100kN/1x200kN
| Model | TY2x80 |
| Max tension | 2x100kN/1x200kN |
| Rated tensio | 2x80kN/1x160kN |
Diesel | 97kw(130hp) |
Engine | Cummins |

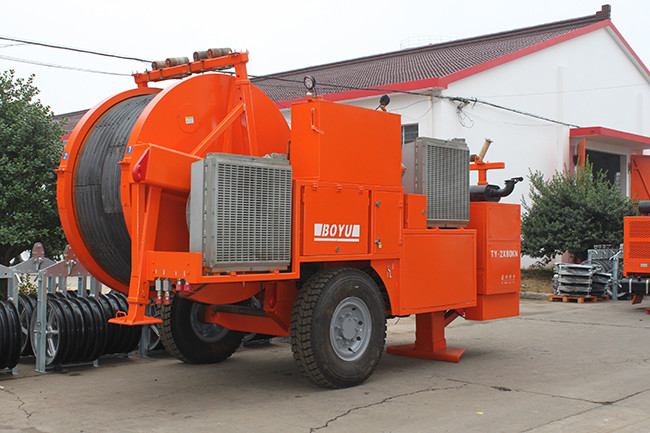

TY2x80 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle
conductor of 1000mm2 in flat lands; besides, it can be used for
tension stringing of OPGW or ADSS optical cable and 500kV haulage
rope in various terrains
Performance
Max tension: 2x100kN/1x200kN
Rated tension: 2x80kN/1x160kN
Speed at max tension: 2.5km/h
Max feeding speed: 5km/h
Pull at max speed: 2x40kN/1x80kN
Max reverse pulling force: 2x40kN/1x80kN
Max reverse pulling speed: 3km/h
Characteristics
Bull-wheel diameter: 1850mm
Groove number: 2x6
Max conductor diameter: 48.75mm
Total weight: 10000kg
Overall dimension (length*width*height):5520*2280*2850mm
Engine
Diesel: 97kw(130hp)
Cooling system: water
Electrical system: 24V
Main configuration
Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth
Hydraulic meter: German
Operating handle: German Rexroth
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical
parking brake
Hydraulic power pack to control up to 2 separate drum stands with
hydraulic motor
Grounding connection point
Additional Devices
Lighting system for the trailer
2 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter
Air brake system for the trailer
