    Diesel Engine 77kw 103hp Overhead Line Stringing Equipment 8tons for twin bundled conductos

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY2x40-9
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    Diesel Engine 77kw 103hp Overhead Line Stringing Equipment 8tons for twin bundled conductos

    Stringing Equipment Tension Machine For Overhead Line With Diesel Engine 77kw(103hp)


    TY2x40 Stringing Equipment Hydraulic Tensioner

    Characteristics

    Bull-wheel diameter

    1300/1500mm

    Max conductor diameter

    40mm

    Groove number

    2x5

    Total weight

    5800kg

    Overall dimension (length*width*height)

    4300*2250*2700mm

    Performance

    Max intermittent pull

    2x45kN

    Max continuous pull

    2x40kN

    Speed at max pull

    2.5km/h

    Max speed

    5km/h

    Pull at max speed

    2x20kN

    Max reverse pulling force

    2x35kN

    Max reverse pulling speed

    5km/h

    Engine

    Diesel

    77kw(103hp)

    Cooling system

    water

    Electrical system

    24V

    Main configuration

    Engine

    Cummins

    Hydraulic pump

    German Rexroth/Dnish Danfoss

    Main motor

    German Rexroth/French Leduc

    Speed reducer

    German Rexroth

    Hydraulic meter

    German

    Operating handl

    German Rexroth

    Hydraulic Transmission

    The machine can realize step less speed.

    The machine is provided with tension presetting system.


    Diesel Engine 77kw 103hp Overhead Line Stringing Equipment 8tons for twin bundled conductos


    SGS Certificate:

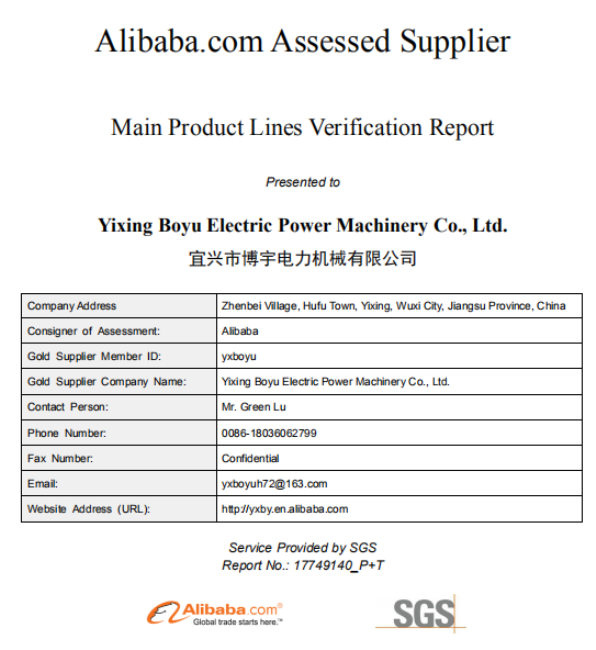

    Alibaba.com Assessed Supplier
    Main Product Lines Verification Report
    Presented to
    Yixing Boyu Electric Power Machinery Co., Ltd.
    Company Address: Zhenbei Village, Hufu Town, Yixing, Wuxi City, Jiangsu Province, China
    Consigner of Assessment: Alibaba Gold Supplier
    Member ID: yxboyu Gold Supplier
    Company Name:
    Yixing Boyu Electric Power Machinery Co., Ltd.
    Contact Person: Mr. Green Lu
    Phone Number: 0086-18036062799
    Fax Number: Confidential
    Email: yxboyuh72@163.com
    Website Address (URL): http://yxby.en.alibaba.com
    Service Provided by SGS Report No.: 17749140_P+T
    Production Line Capacity
    Production Line CapacityActual Units Produced (Previous 12 months)
    Hydraulic Puller: 20 Sets / Month
    Hydraulic Tensioner: 25 Sets / Month
    Anti-twisting steel Braided Rope: 50 Kilometers /
    Month
    Pulley: 2,000 Sets / Month
    Hydraulic Puller: 211 Sets
    Hydraulic Tensioner: 246 Sets
    Anti-twisting steel Braided Rope: 3,660 Kilometers
    Pulley:18,650 Sets

    Production Machinery
    Machine NameBrand & Model No.QuantityNumber of Year usedCondition
    LatheC6150125Acceptable
    Radial DrillZ3050x16/I43Acceptable
    Milling MachineN/A26Acceptable
    Sawing MachineGZ4232A44Acceptable
    CNC cutting MachineYATE13Acceptable
    Shearing MachineDonghai15Acceptable
    Bending MachineDonghai15Acceptable
    Pressing MachineYangli16Acceptable
    Steel Wire Weaving machineN/A86Acceptable
