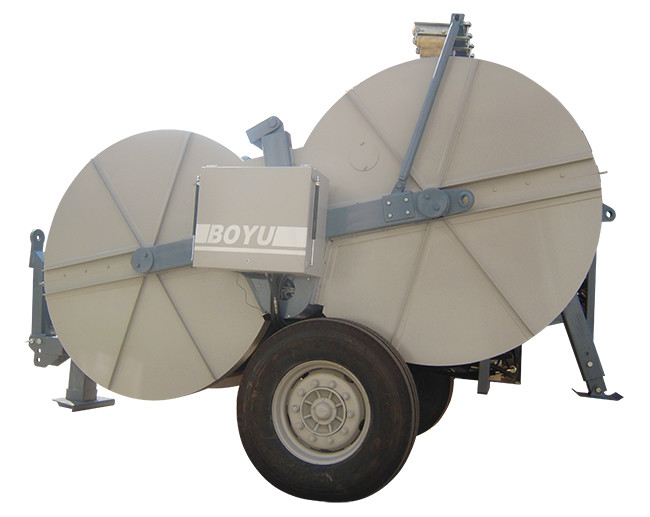

TY2x70 Hydraulic Tensioner

• The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

• Bull-wheel diameter: 1700mm
• Max conductor diameter: 45mm
• Groove number: 2x6
• Total weight: 9000kg
• Overall dimension (length*width*height):4700*2300*2700mm

Performance

• Max intermittent pull: 2x70kN
• Max continuous pull: 2x60kN
• Speed at max pull: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 2x30kN/1x60kN
• Max reverse pulling force: 2*60kN/1*120kN
• Max reverse pulling speed: 3km/h

Main configuration

• Engine: Cummins
• Hydraulic pump: German Rexroth/Dnish Danfoss
• Main motor: German Rexroth/French Leduc
• Speed reducer: German Rexroth
• Hydraulic meter: German
• Operating handle: German Rexroth

Engine

• Diesel: 77kw(103hp)
• Cooling system: water
• Electrical system: 24V

Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.

Configuration

• 2 negative self-acting hydraulic brakes
• 2 hydraulic dynamometers
• Hydraulic oil cooling system
• 2 digital meter and speed counters
• Control instruments for hydraulic system and diesel engine
• Rigid axle for towing at max speed of 30km/h with mechanical parking brake
• Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
• Grounding connection point

Additional Devices

• Lighting system for the trailer
• 2 hydraulic rope/conductor clamp (extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 30 km/h
• Digital speed and meter counter
• Air brake system for the trailer
