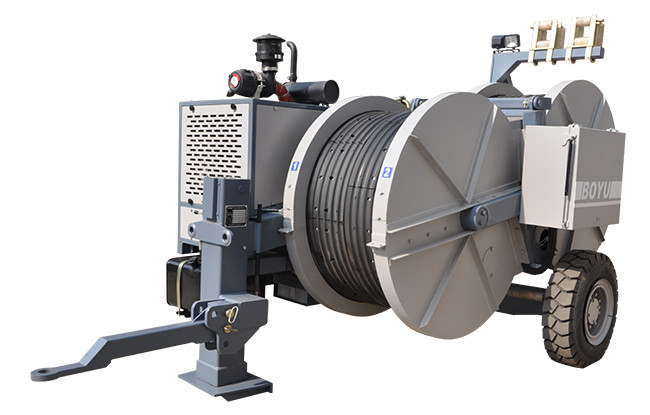

Hydraulic Cable Tensioner For Overhead Line Stringing Equipment Max Continuous Pull 2x35kN

The machine can tension double-bundle conductors of 630mm2 and below in mountainous and hilly areas, double-bundle conductors of 720mm2 and below on flat ground and 720mm2 conductors in different terrains. In addition, it can also be used to pull OPGW or ADSS optical cables and 500kV traction ropes in various terrains.

Characteristics

1. Bull-wheel diameter: 1300mm
2. Max conductor diameter: 40mm
3. Groove number: 2x5
4. Total weight: 4500kg
5. Overall dimension (length*width*height): 4300*2250*2700mm

Performance

1. Max intermittent pull: 2x40kN
2. Max continuous pull: 2x35kN
3. Speed at max pull: 2.5km/h
4. Max speed: 5km/h
5. Pull at max speed: 2x20kN
6. Max reverse pulling force: 2x30kN
7. Max reverse pulling speed: 5km/h

Engine

1. Diesel: 77kw(103hp)
2. Cooling system: water
3. Electrical system: 24V

Main configuration

1. Engine: Cummins
2. Hydraulic meter: German
3. Operating handle: German Rexroth
4. Main motor:German Rexroth/French Leduc
5. Speed reducer: German Rexroth / Italy Brevini
6. Hydraulic pump: German Rexroth/Dnish Danfoss

Hydraulic Transmission

Configuration

Additional Devices

BOYU Overseas Market
Asia:
South korea, Philippines, Pakistan, India, Thailand, Cambodia, Viet nam, Indonesia, Malaysia, Nepal, Sri Lanka, Turkey, Jordan, Tajikistan, Saudi Arabia
Europe:
Poland, United Kingdom
America:
Mexico, Bolivia, United state, Ecuador, Chile, Peru, Brazil, Panama, Argentina, Honduras
Africa:
Algeria, Egypt, Tanzania, Kenya, Ethiopia, Angola, Sudan
Australia:
Australia
Branch	Indonesia Jakarta office
	India Delhi office

We started business in the Philippines in 2014, and our clients include Meralco, Ferrowelds, MB Versoza, Hansei, Jay Engineering, WYN power, Multi Discovery and Sta. Clara et al. (Meralco engineer performs inspection).

Beginning in 2019, we participated in the international bidding of Bolivian and Pakistani government companies. We won the bid from Bolivia "ENDE Transmision" and entered Pakistan "NTDC"

Our main customer STATE GRID is No. 2 of the 500 TOP Companies in the world.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
