Overhead Line Stringing Equipment TY2x40 Hydraulic Tensioner
Cummins Engine

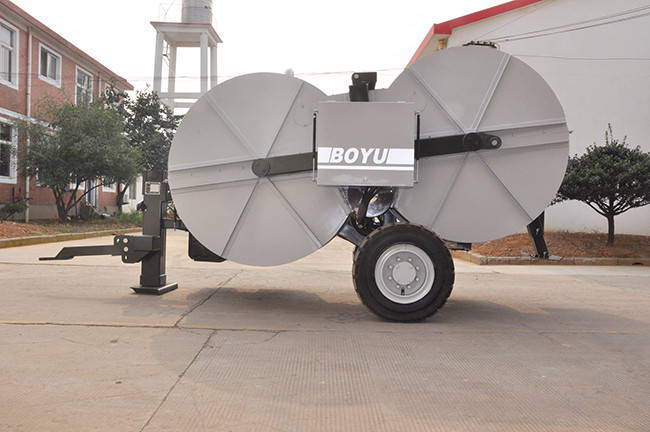

TY2x40 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle
conductor of 630mm2 and below in mountainous and hilly areas, of
twin-bundle conductor of 720mm2 and below in flat lands, and of
conductor 720mm2 in various terrains; besides, it can be used for
tension stringing of OPGW or ADSS optical cable and 500kV haulage
rope in various terrains
| Model | TY2x40 |
| Max continuous pull | 2x40kN |
Diesel | 77kw(103hp) |
Engine | Cummins |
Performance
Max intermittent pull: 2x45kN
Max continuous pull: 2x40kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 2x20kN
Max reverse pulling force: 2x35kN
Max reverse pulling speed: 5km/h
Characteristics
Bull-wheel diameter: 1300/1500mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 5800kg
Overall dimension (length*width*height): 4300*2250*2700mm
Engine
Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V
Main configuration
Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth
Hydraulic meter: German
Operating handle: German Rexroth
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Digital speed and meter counter
Hydraulic front stabilizer
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with
hydraulic motor
Additional Devices
Lighting system for the trailer
2 hydraulic rope/conductor clamp(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter
Company Profile
Yixing Boyu Electric Power Machinery Co., Ltd was established in
1994, a high-tech enterprise in China, More than 27years
experience. |
After years efforts, Boyu has developed as one of the largest
stringing equipment and tools manufacturer in China which has more
than 200 varieties kinds of goods now. |
Our company used about 10% of term of accounting’s value of sale in
every year for R&D. |
Our company developed many types of product to content requirement
of customers, and Product won the customers high praise. |
| There are 158 employees in Boyu, including 16 engineers. |
| There are also more than 40 sets of processing equipment, consist
of 35 sets mechanical processing equipment (including lathe, filing
machine, planer, grinder, ect), 2 sets vertical test equipment. |
| We expanded our business to International market, Australia, UK,
Turkey, Mexico, Peru, Brazil, Egypt, Sudan, Kenya, Angola, India,
Pakistan, Burma, Philippines etc. |
