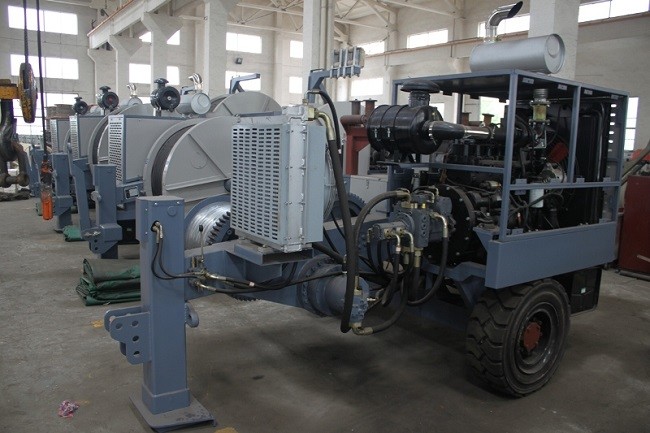

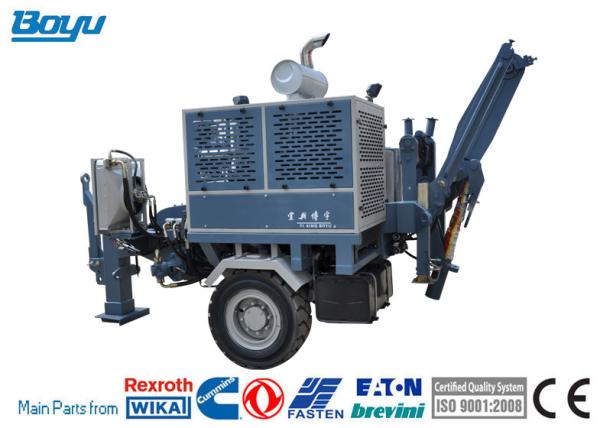

Transmission Line Stringing Equipment Hydraulic Puller With 129kw(173hp) Diesel Engine

Performance

1. Max intermittent pull: 120kN
2. Max continuous pull: 100kN
3. Speed at max pull: 2.5km/h
4. Max speed: 5km/h
5. Pull at max speed: 50kN

Characteristics

1. Bull-wheel diameter: 600mm
2. Groove number: 10
3. Max rope diameter : 24mm
4. Electric system:24 V
5. Max diameter of rope reel: 1400mm
6. Total weight: 4800kg
7. Overall dimension (length*width*height): 4000*2300*2300mm

Engine

1. Diesel: 129kw(173hp)
2. Electrical system: 24V
3. Cooling system: water

Hydraulic Transmission

Company Profile

Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, a high-tech enterprise in China. We have more than 27 years rich experience in this field and provided more than 1000sets equipment for the customer in Power System, Our products are very popular in China, and main customers from STATE GRID, CHINA POWER etc. We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products: 1. Electric power construction tools 2. Nonmetallic galvanized the production equipment (Achieved high-tech products) 3. Numerical control machine 4. Low voltage no power-arc furnace compensation system

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

Company

Workshop

Construction Site
