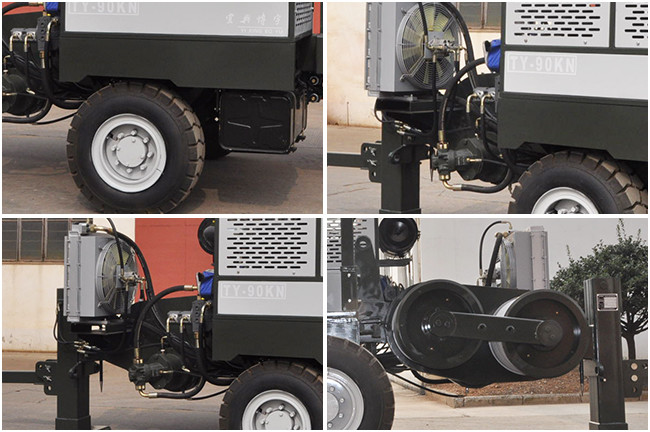

TY90 Stringing Equipment Hydraulic Puller

This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;

besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Performance

Max intermittent pull

90kN

Max continuous pull

80kN

Speed at max pull

2.5km/h

Max speed

5km/h

Pull at max speed

40kN

Characteristics

Bull-wheel diameter

540mm

Groove number

8

Max rope diameter

21mm

Max diameter of rope reel

1400mm

Total weight

4000kg

Overall dimension (length*width*height)

4000*2200*2100mm

Engine

Diesel

118kw(158hp)

Cooling system

water

Electrical system

24V

Main configuration

Engine

Cummins

Hydraulic pump

German Rexroth

Main motor

German Rexroth

Speed reducer

German Rexroth

Tail bracket hoisting motor

American Eton

Hydraulic meter

German

Operating handle

German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.

This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)

• Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy BOYU machines, we provide free technical support by means of phone or mail.

• Also our customers can download operation and maintenance videos from our website.

• We will provide some easily damaged parts of the equipment to ensure the normal operation.

• If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.

• If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.

• If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer’s notice in 48 hrs.

• BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
