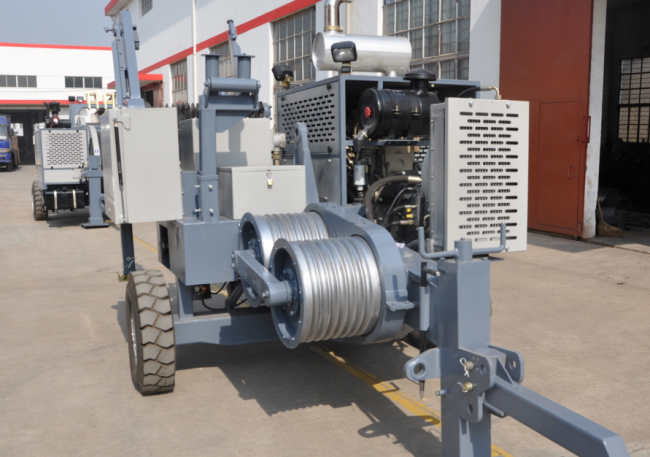

    German Rexroth Pump Transmission Line 60kn Hydraulic Puller Machine

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY60-15
    Certification : ISO9001 CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    German Rexroth Pump Transmission Line 60kn Hydraulic Puller Machine

    Stringing Equipment German Rexroth Hydraulic Pump Hydraulic Puller For Transmission Line


    Performance
    1. Max intermittent pull: 60kN
    2. Max continuous pull: 50kN
    3. Speed at max pull: 2.5km/h
    4. Max speed: 5km/h
    5. Pull at max speed: 25kN
    Characteristics
    1. Bull-wheel diameter: 450mm
    2. Groove number: 7
    3. Max rope diameter: 18mm
    4. Max diameter of rope reel: 1400
    5. Total weight: 3500kg
    6. Overall dimension (length*width*height): 3800*2100*2300mm
    Engine
    1. Diesel: 77kw(103hp)
    2. Cooling system: water
    3. Electrical system: 24V
    Main configuration
    1. Engine: Cummins
    2. Hydraulic pump: German Rexroth
    3. Main motor: German Rexroth
    4. Speed reducer: German Rexroth
    5. Tail bracket hoisting motor: American Eton
    6. Hydraulic meter: German
    7. Operating handle: German Rexroth
    Hydraulic Transmission
    • Closed hydraulic circuit for step less speed variation in both rotating directions.
    • This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
    Configuration
    1. Hydraulic dynamometer with set-point and automatic control of maximum pull
    2. Hydraulic oil cooling system
    3. Control instruments for hydraulic system and diesel engine
    4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
    5. Hydraulic front stabilizer
    6. Grounding connection point
    Additional Devices
    1. Lighting system for the trailer
    2. Hydraulic rope clamp for reel change
    3. Swivel guide rope roller
    4. Trailer for towing at max speed of 30 km/h
    5. Extra shaft
    6. Digital speed and meter counter (extra charge)

    German Rexroth Pump Transmission Line 60kn Hydraulic Puller Machine


    After-sale Service Warranty


    In our factory, the after-sale service is an important part of our marketing and sales work. The quality of service provided will not only influence the company credit, but also closely relate to the safely running of the equipment. In order to maintain the good reputation of BOYU, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution. We will conscientiously implement the after-sale service work in full-scale, and make commitment to our clients as follows:

    Training courses Get the best performance from Boyu power machines

    Boyu power is not a "simple manufacturer" - Boyu is Your best partner! Our Professional Group can offer their expertise by holding technical courses to all customers maximum one month time, and provide accommodation. From Operation to maintenance, Boyu technical training courses are also customized according to different levels of knowledge and to what kind of aim a customer would attain.

    Customer support Customer is our first priority

    Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy Boyu machines, we provide free technical support by means of phone or mail. Also our customers can download operation and maintenance videos from our website.

    • We supply free operation and maintenance training in our factory, and cover all cost of accommodation in China.
    • We supply 3~5days engineering support for operation & maintenance training on your work site, but you have to pay for all the cost of accommodation and round trip ticket.
    • We will provide some easily damaged parts of the equipment to ensure the normal operation.
    • If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU POWER shall take full responsibility and bear all the economic losses incurred.
    • If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.
    • If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer’s notice in 48 hrs.
    • BOYU POWER will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
