Power Line 77kw 103hp Diesel 40kN Hydraulic Cable Puller Machine

TY40 77kw(103hp) Diesel Hydraulic Cable Puller Machine For Power Line

Model		TY40	TY60	TY120	TY150	TY220	TY280	TY380
Max intermittent pull	KN	40	60	120	150	220	280	380
Max continuous pull	KN	30	50	100	120	180	250	350
Speed at max pull	km/h	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max speed	km/h	5	5	5	5	5	5	5
Pull at max speed	KN	20	25	50	60	90	120	170
Diesel	kw(hp)	77(103)	77(103)	129(173)	129(173)	239(320)	298(400)	440(590)
Cooling system		Water	Water	Water	Water	Water	Water	Water
Electrical system	V	24	24	24	24	24	24	24
Bull-wheel diamete	mm	400	450	600	600	760	960	960
Groove number		7	7	10	10	10	11	11
Max rope diameter	mm	16	18	24	24	30	38	38
Max diameter of rope reel	mm	1200	1400	1400	1600	1600	1600	1900
Total weight	kg	3000	3500	4800	5500	6800	12800	13600

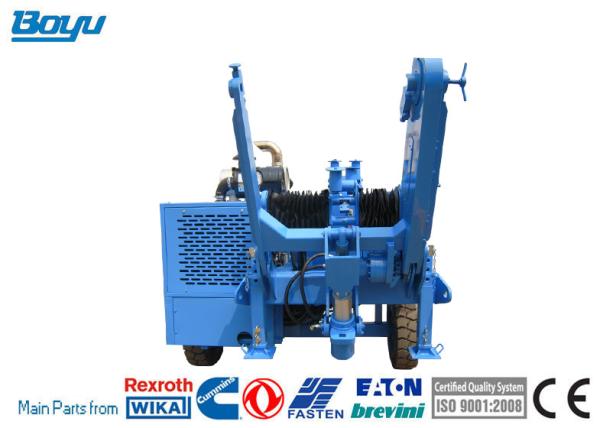

TY40 Hydraulic Puller

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

Engine

Diesel: 77kw(103hp)

Cooling system: water

Electrical system: 24V

Main configuration

Engine: Cummins

Tail bracket hoisting motor: American Eton

Hydraulic meter: German

Operating handle: German Rexroth

Hydraulic pump: German Rexroth

Main motor: German Rexroth

Speed reducer: German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200

Mechanical front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)

Power Line 77kw 103hp Diesel 40kN Hydraulic Cable Puller Machine

After-sales service warranty

If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.

We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
