    1200mm 40kn Transmission Line Hydraulic Cable Puller Water Cooling System

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY40-7
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

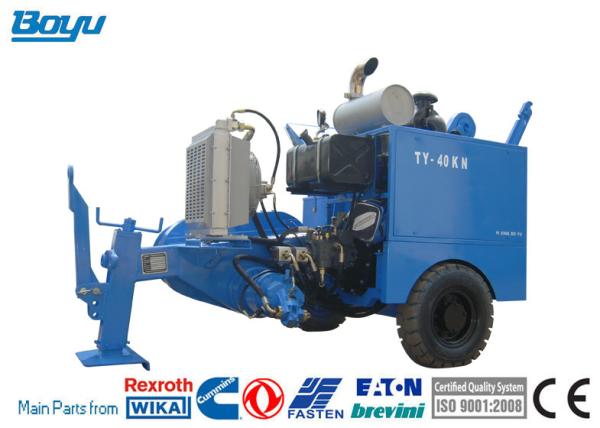

    1200mm 40kn Transmission Line Hydraulic Cable Puller Water Cooling System

    Max Intermittent Pull 40kN Hydraulic Cable Puller For Transmission Line Water Cooling System


    ModelTY40
    Max intermittent pullKN40
    Max continuous pullKN30
    Speed at max pullkm/h2.5
    Max speedkm/h5
    Pull at max speedKN20
    Dieselkw(hp)77(103)
    Cooling systemWater
    Electrical systemV24
    Bull-wheel diametemm400
    Groove number7
    Max rope diametermm16
    Max diameter of rope reelmm1200
    Total weightkg3000

    Main configuration

    • Engine: Cummins
    • Tail bracket hoisting motor: American Eton
    • Hydraulic meter: German
    • Operating handle: German Rexroth
    • Hydraulic pump: German Rexroth
    • Main motor: German Rexroth
    • Speed reducer: German Rexroth

    Configuration

    • Hydraulic dynamometer with set-point and automatic control of maximum pull
    • Mechanical front stabilizer
    • Grounding connection point
    • Hydraulic oil cooling system
    • Control instruments for hydraulic system and diesel engine
    • On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200

    1200mm 40kn Transmission Line Hydraulic Cable Puller Water Cooling System


    Company Profile

    Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, a high-tech enterprise in China. We are manufacturing and sales of kinds of transmission line construction machines and tools such as hydraulic puller, tensioner, conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer.

    Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

    Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents.

    Our company has a total area of 42800 square meters, having formed four series products:

    1: Electric power construction tools

    2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

    3: Numerical control machine

    4: Low voltage no power-arc furnace compensation system

    History

    Established in 1994, Yixing city Boyu power machinery Co., LTD

    In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

    In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

    In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

    In 2009 reworded significant achievement in Wuxi city

    In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

    In 2010 achieved the national ministry of science and technology innovation in science and technology project.

    To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
