Power Line Stringing Equipment Diesel 298kw(400hp) TY280 Hydraulic Cable Puller

TY280 Hydraulic Puller
This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm² below, allowing for the tension stringing of 500kV haulage rope in various terrains.
Characteristics
Bull-wheel diameter	960mm
Groove number	11
Max rope diameter	38mm
Max diameter of connector	100mm
Max diameter of rope reel	1600mm
Total weight	15500kg
Overall dimension (lengthwidthheight)	5800×2300×2700mm
Performance
Max intermittent pull	280kN
Max continuous pull	250kN
Speed at max pull	2.5km/h
Max speed	5km/h
Pull at max speed	120kN
Engine
Diesel	298kw(400hp)
Cooling system	water
Electrical system	24V

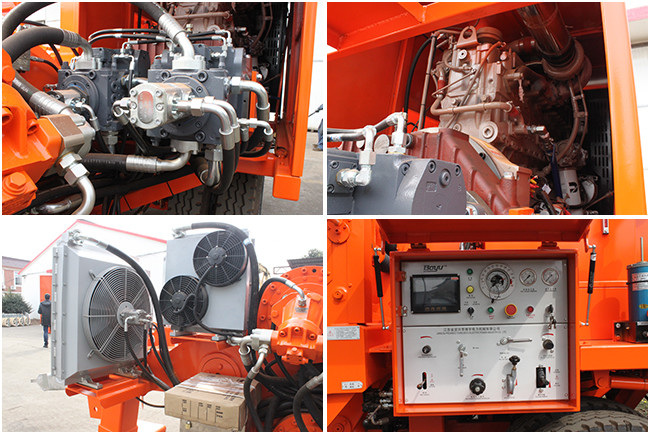

Main configuration
Engine	Cummins
Main pump	German Rexroth
Main motor speed reducer	German Rexroth
Tail bracket hoisting motor	American Eton
Hydraulic meter	German
Operating handle	German Rexroth

Additional Devices

Lighting system for the trailer

Air brake system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600

Hydraulic front stabilizer

Grounding connection point
