    TY280 Cummins Engine 280kN Puller Cable Pulling Equipment Groove Number 11

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY280-2
    Certification : ISO9001 CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    TY280 Cummins Engine 280kN Puller Cable Pulling Equipment Groove Number 11


    TY280 Cummins Engine 280kN Puller For Overhead Stringing Machine Groove Number 11

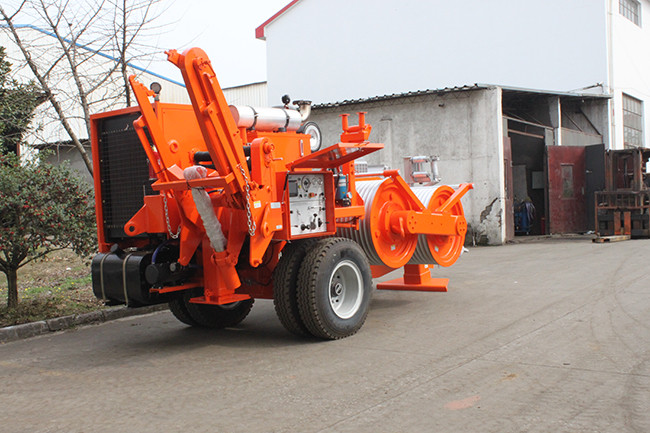

    TY280 Hydraulic Puller
    This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.
    Characteristics
    Bull-wheel diameter960mm
    Groove number11
    Max rope diameter38mm
    Max diameter of connector100mm
    Max diameter of rope reel1600mm
    Total weight15500kg
    Overall dimension (length*width*height)5800×2300×2700mm
    Performance
    Max intermittent pull280kN
    Max continuous pull250kN
    Speed at max pull2.5km/h
    Max speed5km/h
    Pull at max speed120kN
    Engine
    Diesel298kw(400hp)
    Cooling systemwater
    Electrical system24V
    Main configuration
    EngineCummins
    Main pumpGerman Rexroth
    Main motor speed reducerGerman Rexroth
    Tail bracket hoisting motorAmerican Eton
    Hydraulic meterGerman
    Operating handleGerman Rexroth

    TY280 Cummins Engine 280kN Puller Cable Pulling Equipment Groove Number 11


    ModelTY60TY120TY150TY220TY280TY380
    Performance
    Max intermittent pullKN60120150220280380
    Max continuous pullKN50100120180250350
    Speed at max pullkm/h2.52.52.52.52.52.5
    Max speedkm/h555555
    Pull at max speedKN25506090120170
    Engine
    Dieselkw(hp)77(103)129(173)129(173)239(320)298(400)440(590)
    Cooling systemWater
    Electrical systemV24
    Characteristics
    Bull-wheel diametermm450600600760960960
    Groove number71010101111
    Max rope diametermm182424303838
    Max diameter of rope reelmm140014001600160016001900
    Total weightkg35004800550068001280013600
    Overall dimensionmm

    3800*2100

    *2300

    4000*2300

    *2300

    4300*2300

    *2400

    5300*2360

    *2750

    5800*2300

    *2700

    6000*2600

    *2800


    Company

    • Yixing Boyu Electric Power Machinery Co., Ltd insist cooperation culture of Quality as life, reputation as fundamental, and engage in providing reliable and safe operation of power network for the customers.
    • We have more than 27 years rich experience in this field and provided more than 1000sets equipment for the customer in Power System
    • We are a company specializing in the research and development, manufacturing and sales of various transmission line engineering machinery such as hydraulic transmission systems.
    • Puller, tensioner, conductor pulleys, anti-twist galvanized steel wire rope and provide customers with accessories and technical services.
    • Our company spends 10% of accounting sales on research and development every year.
