Transmission Line Stringing Equipment TY60 Max Intermittent Pull
60kN Hydraulic Puller

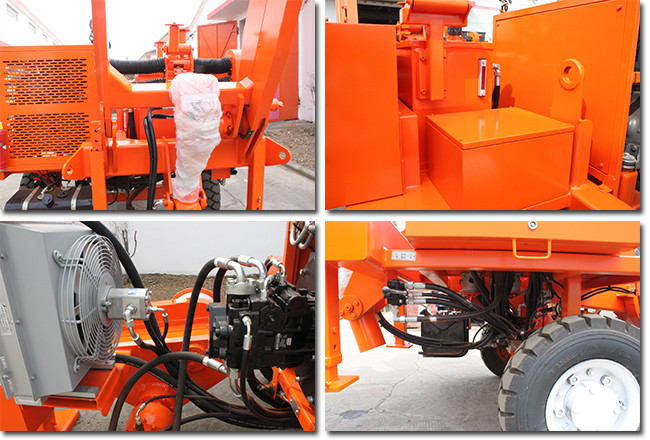

TY60 Hydraulic Puller
Performance Max intermittent pull: 60kN Max continuous pull: 50kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 25kN |
Characteristics Bull-wheel diameter: 450mm Groove number: 7 Max rope diameter : 18mm Max diameter of rope reel: 1400mm Total weight: 3500kg Overall dimension (length*width*height): 3800×2100×2300mm |
Engine Diesel 77kw(103hp) Cooling system water Electrical system 24V |
Main configuration Engine: Cummins hydraulic pump: German Rexroth Main motor: German Rexroth speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth |
Hydraulic Transmission Closed hydraulic circuit for step less speed variation in both
rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also
when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads
which may occur. |
Configuration Hydraulic dynamometer with set-point and automatic control of
maximum pull Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine On board reel winder with automatic level wind, suitable for
standard reel mod. 1100 and 1400 Hydraulic front stabilizer Grounding connection point |
Additional Devices Lighting system for the trailer Hydraulic rope clamp for reel change Swivel guide rope roller Trailer for towing at max speed of 30 km/h Extra shaft Digital speed and meter counter (extra charge) |
TY60 Hydraulic Puller
Together with tension machine, this model allows for the tension
stringing of 220kV lines in mountainous and hilly areas and can be
used for the traction stringing of OPGW or ADSS cable in various
terrains.
| Model | | TY40 | TY60 | TY120 | TY150 | TY220 | TY280 | TY380 |
| Performance |
| Max intermittent pull | KN | 40 | 60 | 120 | 150 | 220 | 280 | 380 |
| Max continuous pull | KN | 30 | 50 | 100 | 120 | 180 | 250 | 350 |
| Speed at max pull | km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max speed | km/h | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Pull at max speed | KN | 20 | 25 | 50 | 60 | 90 | 120 | 170 |
| Model | | TY40 | TY60 | TY120 | TY150 | TY220 | TY280 | TY380 |
| Engine |
| Diesel | kw(hp) | 77(103) | 77(103) | 129(173) | 129(173) | 239(320) | 298(400) | 440(590) |
| Cooling system | | Water |
| Electrical system | V | 24 |
