2x70kN 77kw 103hp Stringing Tools For Transmission Lines Water Cooling System

Tension Stringing Equipment 2x70kN 77kw(103hp) Hydraulic Tensioner Water Cooling System

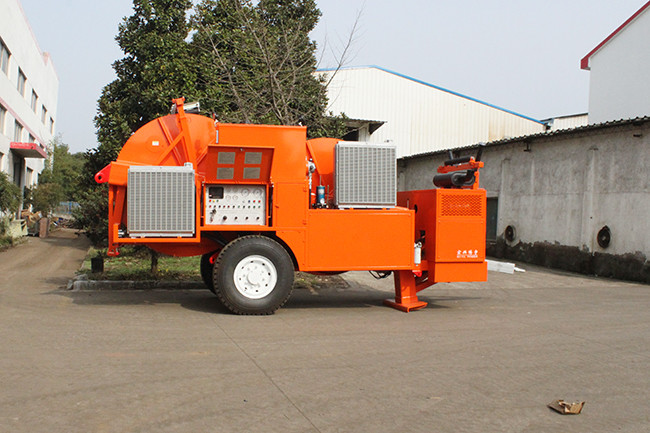

TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
Max intermittent pull	2x70kN
Max continuous pull	2x60kN
Speed at max pull	2.5km/h
Max speed	5km/h
Pull at max speed	2x30kN/1x60kN
Max reverse pulling force	2x60kN/1x120kN
Max reverse pulling speed	3km/h
Characteristics
Bull-wheel diameter	1700mm
Max conductor diameter	45mm
Groove number	2x6
Total weight	9000kg
Overall dimension (lengthwidthheight)	470023002700mm
Engine
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V
Main configuration
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth
Hydraulic meter	German
Operating handle	German Rexroth
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter and speed counters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Grounding connection point
Additional Devices
Lighting system for the trailer
2 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter
Air brake system for the trailer

2x70kN 77kw 103hp Stringing Tools For Transmission Lines Water Cooling System

Boyu History

►Our company was established in 1994

►BOYU passed ISO9001 certification in 2001 and obtained AAA certificate at the same time

►In 2006, it was awarded the contract and trustworthy enterprise in Wuxi City, and the famous brand product in Wuxi City in the same year

►In 2007, won the title of Jiangsu Province High-tech Enterprise, and in the same year won the Jiangsu Province Famous Brand Product

►In 2009, won a major achievement award in Wuxi City

►In 2010, Boyu cooperated with the famous German Caesars company and founded the Boset brand

►Our company obtained the National Science and Technology Innovation Program Project in 2010.

►As of November 8, 2010, Boyu has successfully sold nearly 4,000 sets of pullers and tensioning equipment (excluding mobile ground grinding). Our products sell well in Sudan, Myanmar, India, Kenya, Pakistan, Mexico, Angola, Germany.
