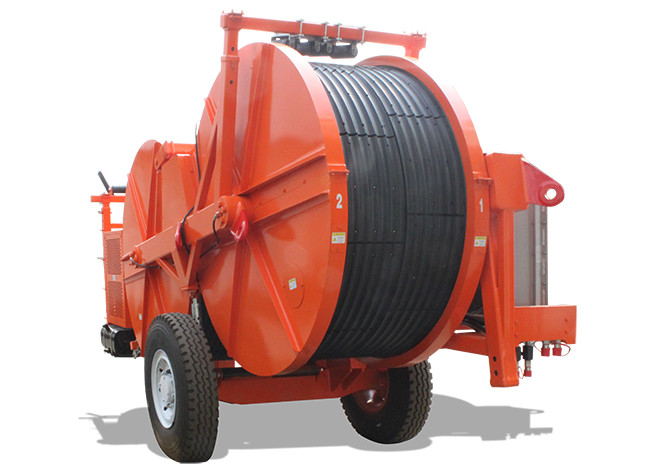

Tensioner Machine For Overhead Stringing TY2x80 97kw Hydraulic
Tensioner
| Max tension | 2x100kN / 1x200kN |
| Rated tension | 2x80kN / 1x160kN |
| Speed at max tension | 2.5km/h |
| Max feeding speed | 5km/h |
| Pull at max speed | 2x40kN/1x80kN |
| Max reverse pulling force | 2x40kN/1x80kN |
| Max reverse pulling speed | 3km/h |
| Bull-wheel diameter | 1850mm |
| Groove number | 2x6 |
| Max conductor diameter | 48.75mm |
| Total weight | 10000kg |
| Overall dimension (length*width*height) | 5520×2280×2850mm |
| Diesel | 97kw(130hp) |
| Cooling system | water |
| Electrical system | 24V |
| Engine | Cummins |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Hydraulic Transmission |
| The machine can realize step less speed. |
| The machine is provided with tension presetting system. |
| Configuration |
| 2 negative self-acting hydraulic brakes |
| 2 hydraulic dynamometers |
| Hydraulic oil cooling system |
| 2 digital meter counters |
| 2 digital speed meters |
| Control instruments for hydraulic system and diesel engine |
| Rigid axle for towing at max speed of 30km/h with mechanical
parking brake |
| Hydraulic power pack to control up to 2 separate drum stands with
hydraulic motor |
| Grounding connection point |
| Additional Devices |
| Lighting system for the trailer |
| 2 hydraulic rope/conductor clamp (extra charge) |
| Swivel guide rope roller |
| Trailer for towing at max speed of 30 km/h |
| Digital speed and meter counter |
| Air brake system for the trailer |
Company Profile
Our company is located in Yixing City, Jiangsu Province with a
total area of 42,800 square meters and more than 160 employees.
Our company is a high-tech enterprise in Jiangsu Province and has
six patents, two of which are invention patents.
Our company has formed four series of products:
1: Power construction tools
2: Non-metallic galvanized production equipment (obtained high-tech
products)
3: CNC machine tools
4: Low-voltage unpowered electric arc furnace compensation system
Boyu's history
Our company was established in 1994
Our company passed ISO9001 certification in 2001 and obtained AAA
certificate at the same time
In 2006, it was awarded the contract and trustworthy enterprise in
Wuxi City, and the famous brand product in Wuxi City in the same
year
In 2007, won the title of Jiangsu Province High-tech Enterprise,
and in the same year won the Jiangsu Province Famous Brand Product
In 2009, won a major achievement award in Wuxi City
In 2010, Boyu cooperated with the famous German Caesars company and
founded the Boset brand
Our company obtained the National Science and Technology Innovation
Program Project in 2010.
As of November 8, 2010, Boyu has successfully sold nearly 4,000
sets of pullers and tensioning equipment (excluding mobile ground
grinding). Our products sell well in Sudan, Myanmar, India, Kenya,
Pakistan, Mexico, Angola, Germany.
