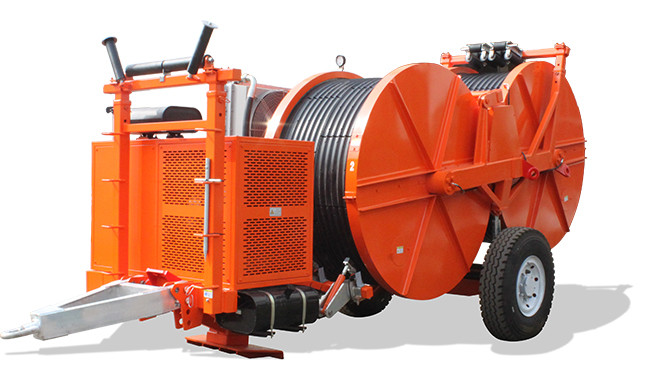

Tension Stringing Equipment 2x80kN / 1x160kN Hydraulic Tensioner Groove Number 2x6

Performance

1. Max tension: 2x100kN / 1x200kN
2. Rated tension: 2x80kN / 1x160kN
3. Speed at max tension: 2.5km/h
4. Max reverse pulling force: 2x40kN/1x80kN
5. Max reverse pulling speed: 3km/h
6. Max feeding speed: 5km/h
7. Pull at max speed: 2x40kN/1x80kN

Characteristics

1. Bull-wheel diameter: 1850mm
2. Max conductor diameter: 48.75mm
3. Total weight: 10000kg
4. Groove number: 2x6
5. Overall dimension (length*width*height):5520×2280×2850mm

Engine

1. Diesel 97kw(130hp)
2. Cooling system water
3. Electrical system 24V

Main configuration

1. Engine: Cummins
2. Speed reducer: German Rexroth
3. Hydraulic meter: German
4. Operating handle: German Rexroth
5. Hydraulic pump: German Rexroth/Dnish Danfoss
6. Main motor:German Rexroth/French Leduc

Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.

Configuration

• 2 negative self-acting hydraulic brakes
• 2 hydraulic dynamometers
• Hydraulic oil cooling system
• 2 digital meter counters
• 2 digital speed meters
• Rigid axle for towing at max speed of 30km/h with mechanical parking brake
• Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
• Grounding connection point
• Control instruments for hydraulic system and diesel engine

Additional Devices

• Trailer for towing at max speed of 30 km/h
• Digital speed and meter counter
• Air brake system for the trailer
• Lighting system for the trailer
• 2 hydraulic rope/conductor clamp (extra charge)
• Swivel guide rope roller

Other Models

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
