    Overhead Stringing Hydraulic Puller Machine Cummins Engine 4- Bundle Conductor

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY160-21
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    Overhead Stringing Hydraulic Puller Machine Cummins Engine 4- Bundle Conductor


    Puller Machine For Overhead Stringing Cummins Engine 4-bundle Conductor Hydraulic Puller

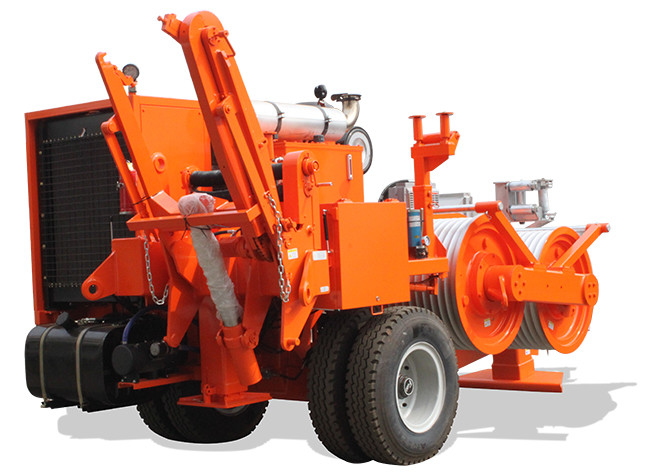

    TY160 Hydraulic Puller

    The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

    PerformanceMax intermittent pull160kN
    Max continuous pull120kN
    Speed at max pull2.5km/h
    Max speed5km/h
    Pull at max speed60kN
    CharacteristicsBull-wheel diameter620mm
    Groove number10
    Max rope diameter24mm
    Electric system24V
    Max diameter of rope reel1600mm
    Total weight5500kg
    Overall dimension (length*width*height)4300*2300*2400mm
    EngineDiesel239kw(320hp)
    Cooling systemWater
    Electrical system24V
    Main configurationEngineCummins
    Hydraulic pumpGerman Rexroth
    Main motorGerman Rexroth
    Speed reducerGerman Rexroth
    Tail bracket hoisting motorAmerican Eton
    Hydraulic meterGerman
    Operating handleGerman Rexroth
    Hydraulic TransmissionClosed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
    ConfigurationHydraulic dynamometer with set-point and automatic control of maximum pull
    Hydraulic oil cooling system
    Control instruments for hydraulic system and diesel engine
    On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
    Hydraulic front stabilizer
    Grounding connection point
    Additional DevicesLighting system for the trailer
    Hydraulic rope clamp for reel change
    Swivel guide rope roller
    Trailer for towing at max speed of 30 km/h
    Extra shaft
    Digital speed and meter counter (extra charge)

    Overhead Stringing Hydraulic Puller Machine Cummins Engine 4- Bundle Conductor

    Quality, loyalty and service is our faith!

    1. Deemed continuous improvement as our permanent pursuits.

    2. We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.

    3. We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.

    4. We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.

    5. Once receive the customer’s enquiry , we will response within 24 hours.

    6. Do the best Cable Stringing Roller Transmission Line Stringing Accessories in China.
