    Hydraulic Tensioner Tension Stringing Equipment Deutz Engine Max Continuous Pull 40kn

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY1x40DQ
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

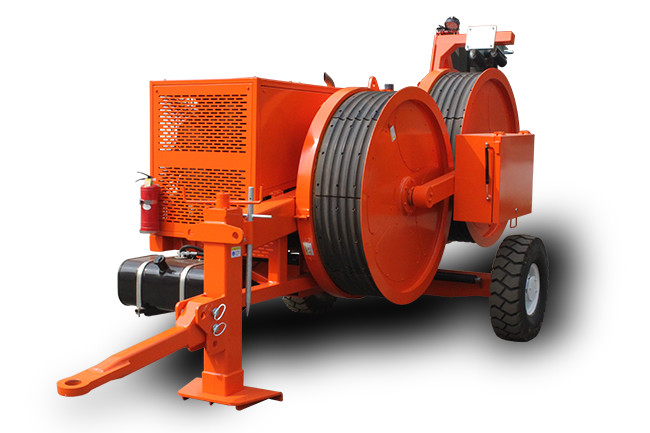

    Hydraulic Tensioner Tension Stringing Equipment Deutz Engine Max Continuous Pull 40kn

    Tension Stringing Equipment Hydraulic Tensioner Deutz Engine Max Continuous Pull 40kN

    • Model: TY1x40DQ
    • Bull-wheel diameter: 1300/1500mm
    • Max conductor diameter: 40mm
    • Max Optical fiber cable diameter: 21mm
    • Groove width: 55mm
    • Groove number: 5
    • Total weight: 2800kg
    • Overall dimension (length*width*height): 4200×2000×2500mm
    • Structural Style: Single bridge trailer
    • Hydraulic power output: Connected hydraulic lead tail car
    • Max intermittent pull: 45kN
    • Max continuous pull: 40kN
    • Speed at max pull: 2.5km/h
    • Max speed: 5km/h
    • Corresponding Tension: 20kN
    • Max Reverse Pulling Force: 40kN
    • Max Reverse pulling Speed: 3km/h
    • Engine: Deutz air cooled
    • Quantitative pump: HUADE
    • Main motor:German Rexroth/French HYDROLEDUC
    • Speed reducer: German Rexroth / Italy BONFIGLIOLI
    • Main hydraulic valve parts: German Rexroth/American SUN/Italy ATOS
    • Diesel 56kw(73hp)
    • Cooling system air cooled
    • Electrical system 24V
    Hydraulic Transmission
    • The machine can realize step less speed
    • The machine is provided with tension presetting system
    Configuration
    • Hydraulic dynamometers
    • Hydraulic oil cooling system
    • Mechanical meter counters
    • Grounding connection point
    • Hydraulic power pack to control drum stands with hydraulic motor

    Additional Devices

    • Lighting system for the trailer
    • Air brake system for the trailer(extra charge)
    • Hydraulic conductor clamps for drum change operations (extra charge)
    • Swivel guide rope roller
    • Trailer for towing at max speed of 30 km/h
    • Digital speed and meter counter

    Hydraulic Tensioner Tension Stringing Equipment Deutz Engine Max Continuous Pull 40kn


    Other Models

    Model

    Max

    intermittent tension

    		Max continuous tensionSpeed at max tensionMax speedTension at max speedMax reverse pulling forceMax reverse pulling speedDieselCooling systemElectrical system
    kNkNkm/hkm/hkNkNkm/hkw(hp)V
    TY1X20III202.551015

    10kw

    (3600rpm)

    		Air
    TY1X30D302.55152018(25)12
    TY1X30302.55152012(16)12
    TY1X4045402.55203577(103)Water24
    TY1X5050402.5525452.477(103)Water24
    TY1X6070602.553550577(103)Water24
    TY1X60III70602.553060277(103)Water24
    TY1X7070602.5535502.477(103)Water24
    TY1X70II75702.5575225(34)Water24
    TY1X80100802.554070397(131)Water24
    TY1X80III1x901x802.551x501x70577(103)Water24
    TY140IV1x1401x1202.55351x1201.277(103)Water24

    ModelBull-wheel diameterMax conductor diameterMax optical fiber cable diameterGroove widthGroove numberTotal weightOverall damension
    mmmmmmmmkgmm
    TY1X20III80022.555511502500*1500*1700
    TY1X30D1300402160524004000*1900*2300
    TY1X301300402160520643700*1950*2150
    TY1X401300402155534304000*2000*2300
    TY1X501300/1500552168624004000*1900*2300
    TY1X6015004065648004300*2050*2600
    TY1X60III1500/130055/501840/351240004300*2300*2700
    TY1X701500552168630004500*2200*2300
    TY1X70II15004018551030004500*2200*2300
    TY1X801850651768652005520*2100*2850
    TY1X80III1500403X465004700*2300*2700
    TY140IV15004016100005500*2280*2700
