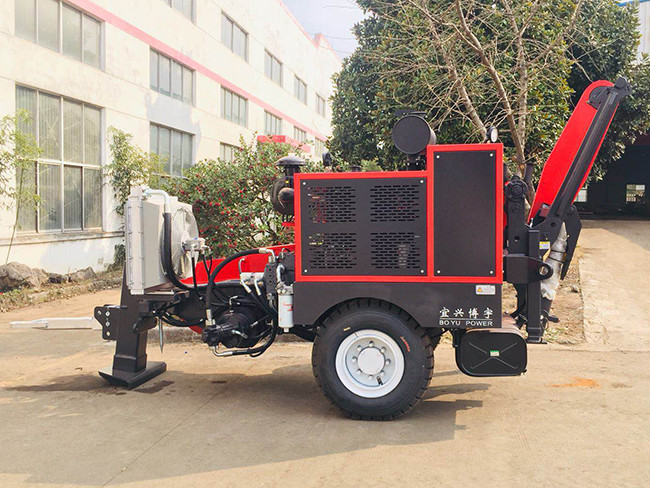

Transmission Line Stringing Equipment 100kN 158hp Hydraulic Cable
Puller
| Model | TY90 |
| Max pull | 100kN |
| Max continuous pull | 90kN |
| Speed at max pull | 2.5km/h |
| Max speed | 5km/h |
| Pull at max speed | 40kN |
| Bull-wheel diameter | 540mm |
| Groove number | 8 |
| Max rope diameter | 21mm |
| Max diameter of rope reel | 1400mm |
| Total weight | 4350kg |
| Overall dimension (length*width*height) | 4500×2100×2450mm |
| Diesel | 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged |
| Cooling system | liquid |
| Electrical system | 24V |
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Tail bracket hoisting motor | American Eton |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Additional Devices
The chassis provided with Brake, back lights and mudguard, with a
single point lift to allow lifting with a crane.
Cable and radio remote control fully replacing all controls at
machine panel.
Hydraulic system for drum stand control with flat face quick action
couplings
Auxiliary Hydraulic system (700/1000 bar) for power pressing tool
Remote diagnosis via GSM network with GPS modem, Synchronization
system
Manufacturer's workshop maintenance manual, in English
Manufacturer's recommended tools.
Biodegradable hydraulic oil, Allowable tension indictor, Overload
tension alarm, First Aid Kit
Lockable toolbox, Holding fixture for hose kit, Grounding plate,
Acoustic insulation
Manufacturer's routine spares for five years' duty (filters, bulbs,
etc.).
Other Model
| Model | | TY40 | TY60 | TY120 | TY150 | TY180 | TY220 | TY280 | TY380 |
| Max intermittent pull | KN | 40 | 60 | 120 | 150 | 190 | 220 | 280 | 380 |
| Max continuous pull | KN | 30 | 50 | 100 | 120 | 180 | 180 | 250 | 350 |
| Speed at max pull | km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max speed | km/h | 5 | 5 | 5 | 5 | 6 | 5 | 5 | 5 |
| Pull at max speed | KN | 20 | 25 | 50 | 60 | 75 | 90 | 120 | 170 |
| Diesel | kw(hp) | 77(103) | 77(103) | 129(173) | 129(173) | 325 | 239(320) | 298(400) | 440(590) |
| Cooling system | | Water | Water | Water | Water | Liquid | Water | Water | Water |
| Electrical system | V | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Bull-wheel diamete | mm | 400 | 450 | 600 | 600 | 750 | 760 | 960 | 960 |
| Groove number | | 7 | 7 | 10 | 10 | 10 | 10 | 11 | 11 |
| Max rope diameter | mm | 16 | 18 | 24 | 24 | 28 | 30 | 38 | 38 |
| Max diameter of rope reel | mm | 1200 | 1400 | 1400 | 1600 | 1400 | 1600 | 1600 | 1900 |
| Total weight | kg | 3000 | 3500 | 4800 | 5500 | 6700 | 6800 | 12800 | 13600 |
