    ISO9001 Approved CE Certificate TY2x40 Hydraulic Tensioner Max Continuous Tension 40kN 8tons with Cummins Engine

    Ask Lasest Price
    Brand Name : Boyu
    Model Number : TY2x40-20
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    ISO9001 Approved CE Certificate TY2x40 Hydraulic Tensioner Max Continuous Tension 40kN 8tons with Cummins Engine

    TY2x40 Tension Stringing Equipment Hydraulic Tensioner Cummins Engine Max Continuous Tension 2x40/1x80kN


    Model

    Max

    intermittent tension

    		Max continuous tensionSpeed at max tensionMax speedTension at max speedMax reverse pulling forceMax reverse pulling speed
    kNkNkm/hkm/hkNkNkm/h
    TY2X35

    2x40/

    1x80

    2x35/

    1x70

    		2.55

    2x20/

    1x40

    2x30/

    1x60

    		5
    TY2X40

    2x45/

    1x90

    2x40/

    1x80

    		2.55

    2x20/

    1x40

    2x35/

    1x70

    		5
    TY2X50

    2x55/

    1x110

    2x50/

    1x100

    		2.55

    2x25/

    1x50

    2x45/

    1x90

    		5
    TY2X70

    2x70/

    1x140

    2x65/

    1x130

    		2.55

    2x25/

    1x50

    2x60/

    1x120

    		5
    TY2x70IV

    2x70/

    1x140

    2x65/

    1x130

    		2.55

    2x25/

    1x50

    2x60/

    1x120

    		5
    TY2X90

    2x100/

    1x200

    2x90/

    1x180

    		2.55

    2x40/

    1x80

    2x80/

    1x160

    		2
    TY4x50

    4x50/

    2x200

    4x40/

    2x80

    		2.55

    4x20/

    2x40

    4x40/

    2x80

    		1.25

    ModelDieselCooling systemElectrical system
    kw(hp)V
    TY2X3577(103)Water24
    TY2X4077(103)Water24
    TY2X5077(103)Water24
    TY2X7077(103)Water24
    TY2x70IV77(103)Water24
    TY2X90

    130kw

    (2500r/min)

    		Water24
    TY4x5077(103)Water24

    ModelBull-wheel diameterMax conductor diameterMax optical fiber cable diameterGroove widthGroove numberTotal weightOverall damension
    mmmmmmmmkgmm
    TY2X351300402x545004300*2250*2700
    TY2X401300/1500402x562304300*2250*2700
    TY2X501300/1500402x560004700*2300*2700
    TY2X701700402x675004700*2300*2700
    TY2x70IV1500402x8100005500*2280*2700
    TY2X901900502x675005400*2300*2700
    TY4x501500404x5130005900*2300*2700

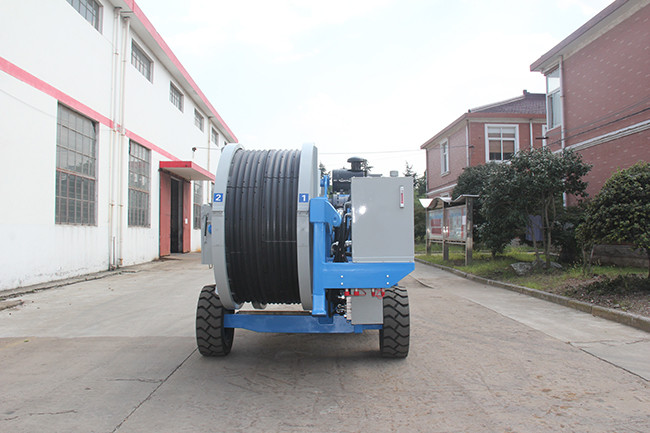

    TY2x40 Hydraulic Tensioner

    The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

    Characteristics

    Bull-wheel diameter: 1300/1500mm

    Groove number: 2x5

    Total weight: 6230kg

    Max conductor diameter: 40mm

    Overall dimension (length*width*height): 4300×2250×2700mm

    Performance

    Max intermittent tension: 2x45kN

    Max continuous tension: 2x40kN

    Speed at max tension: 2.5km/h

    Max speed: 5km/h

    Pull at max speed: 2x20kN

    Max reverse pulling force: 2x35kN

    Max reverse pulling speed: 5km/h

    Main configuration

    Engine: Cummins

    Hydraulic meter: German

    Operating handle: German Rexroth

    Hydraulic pump: German Rexroth/Dnish Danfoss

    Main motor:German Rexroth/French Leduc

    speed reducer: German Rexroth / Italy Bonfiglioli


    Engine

    Diesel 77kw(103hp)

    Cooling system water

    Electrical system 24V

    Hydraulic Transmission

    The machine can realize step less speed.

    The machine is provided with tension presetting system.

    Configuration

    Hydraulic dynamometers

    Hydraulic oil cooling system

    Digital speed and meter counter

    Hydraulic front stabilizer

    Grounding connection point

    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

    Additional Devices

    Lighting system for the trailer

    2 hydraulic rope/conductor clamp(extra charge)

    Swivel guide rope roller

    Trailer for towing at max speed of 30 km/h

    Digital speed and meter counter
