Tension Stringing Equipment Diesel 77kw(103hp) Hydraulic Tensioner Max Continuous Tension 2x50/1x100kN

TY2x50 Hydraulic Tensioner

• The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

1. Model: TY2x50
2. Max intermittent tension: 2x55/1x110kN
3. Max continuous tension: 2x50/1x100kN
4. Speed at max tension: 2.5km/h
5. Max speed: 5km/h
6. Tension at max speed: 2x25/1x50kN
7. Max reverse pulling force: 2x45/1x90kN
8. Max reverse pulling speed: 5km/h

Engine

1. Diesel: 77kw(103hp)
2. Cooling system: water
3. Electrical system: 24V

Characteristics

1. Bull-wheel diameter: 1300/1500mm
2. Max conductor diameter: 40mm
3. Groove number: 2x5
4. Total weight: 6000kg
5. Overall dimension: 4700x2300x2700mm

Main configuration

1. Engine Cummins
2. Hydraulic pump German Rexroth/Dnish Danfoss
3. Main motor German Rexroth/French Leduc
4. Speed reducer German Rexroth
5. Hydraulic meter German
6. Operating handle German Rexroth

Company

Our company is located in Yixing City, Jiangsu Province with a total area of ​​42,800 square meters and more than 160 employees.

Our company is a high-tech enterprise in Jiangsu Province and has six patents, two of which are invention patents.

Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, a high-tech enterprise in China, More than 27years experience

Yixing Boyu Electric Power Machinery Co., Ltd is willing to create a friendly cooperation relationship with customers to seek development and create prosperity.

After-sales service warranty

After-sales service is an important part of our marketing and sales work.

The quality of the services provided will not only affect the company's reputation, but is closely related to the safe operation of the equipment.

In order to maintain Boyu's good reputation, we strictly abide by the provisions of the National Product Quality Law, and provide customers with high-quality products and excellent services based on the principles of hospitality, enthusiastic service, rapid response and rapid resolution.

Training course

Boyu is not a "simple manufacturer"-BOYU is your best partner!

Our company has a professional technical team that can provide all customers with up to one month of technical courses to provide their professional knowledge, but it needs to provide accommodation.

From operation to maintenance, BOYU technical training courses are also tailored to the different needs of customers.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

Company

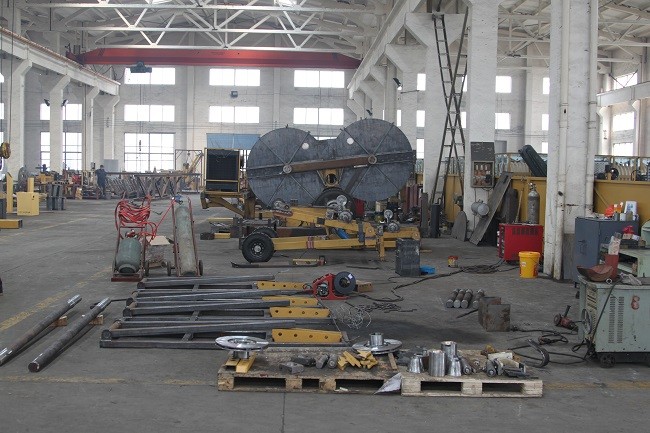

Workshop

Construction Site
