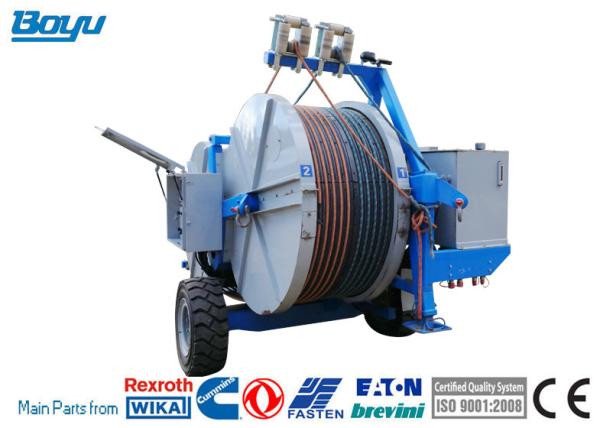

Hydraulic Tensioner TY2x40

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

• Max intermittent tension: 2x45/1x90kN
• Max continuous tension: 2x40/1x80kN
• Speed at max tension: 2.5km/h
• Max speed: 5km/h
• Tension at max speed: 2x20/1x40kN
• Max reverse pulling force: 2×35/1x70kN
• Max reverse pulling speed: 5km/h

Characteristics

• Bull-wheel diameter: 1300/1500mm
• Max conductor diameter: 40mm
• Groove number: 2x5
• Total weight: 6230kg
• Overall dimension: 4300×2250×2700mm

Main configuration

• Engine Cummins
• Hydraulic pump German Rexroth/Dnish Danfoss
• Main motor German Rexroth/French Leduc
• Speed reducer German Rexroth
• Hydraulic meter German
• Operating handle German Rexroth

Engine

• Diesel: 77kw(103hp)
• Cooling system: water
• Electrical system: 24V

Configuration

·Hydraulic dynamometers

·Hydraulic oil cooling system

·Digital speed and meter counter

·Hydraulic front stabilizer

·Grounding connection point

·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Hydraulic Transmission

·The machine can realize step less speed

·The machine is provided with tension presetting system

Additional Devices

·Lighting system for the trailer

·2 hydraulic rope/conductor clamp (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Digital speed and meter counter

• The after-sale service is an important part of our marketing and sales work.
• The quality of the services provided will not only affect the company's reputation, but is closely related to the safe operation of the equipment.
• In order to maintain the good reputation of BOYU, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution.

Training course

1. Boyu is not a "simple manufacturer"-BOYU is your best partner!
2. Our company has a professional technical team that can provide all customers with up to one month of technical courses to provide their professional knowledge, but it needs to provide accommodation.
3. From Operation to maintenance, BOYU technical training courses are also customized according to different levels of knowledge and to what kind of aim a customer would attain.
