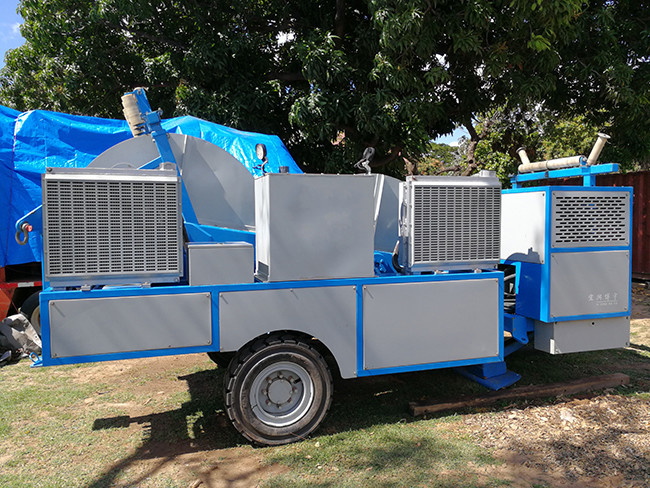

Overhead Line Stringing Equipment Hydraulic Puller Tensioner Max Pull 2x45kN/1x90kN

• The machine is suitable to string one or two ropes or bundled conductors.
• The bull-wheel grooves are made of high resistance interchangeable nylon sectors.
• The machine is completely electronically controlled.

Puller

• Max pull: 2x45kN/1x90kN
• Speed at max pull: 2.4km/h
• Max speed: 5km/h
• Pull at max speed: 2x22kN/1x44kN
• Tensioner
• Max tension: 2x45kN/1x90kN
• Max speed: 5km/h

Engine

• Diesel: 118kw(158hp)
• Cooling system: water
• Electrical system: 24V

Characteristics

• Bull-wheel diameter: 1500mm
• Max rope diameter: 18mm
• Max conductor diameter: 40mm
• Total weight: 6200kg
• Overall dimension: 4700×2300×2700mm

Main configuration

• Engine: Cummins
• Hydraulic pump: German Rexroth
• Main motor: German Rexroth
• Speed reducer: German Rexroth
• Hydraulic meter: German
• Operating handle: German Rexroth

Other Models

Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, is a high-tech enterprise specializing in R&D, manufacture and sales of various transmission line stringing equipment and tools such as hydraulic puller, tensioner and wire pulley, and provides customers with accessories and technical services. After years of efforts, Boyu has developed into one of the largest manufacturers of stringing equipment and tools in China, and currently supplies more than 200 varieties of products.

At present, our annual output value exceeds 30 million US dollars, and we provide more than 1,000 sets of equipment for customers of power system. Our products are very popular in China, and our main customers include STATE GRID, CHINA POWER, EETC and so on. We have also been doing business in the international market for more than 10 years, and have done business in more than 50 countries/regions.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
