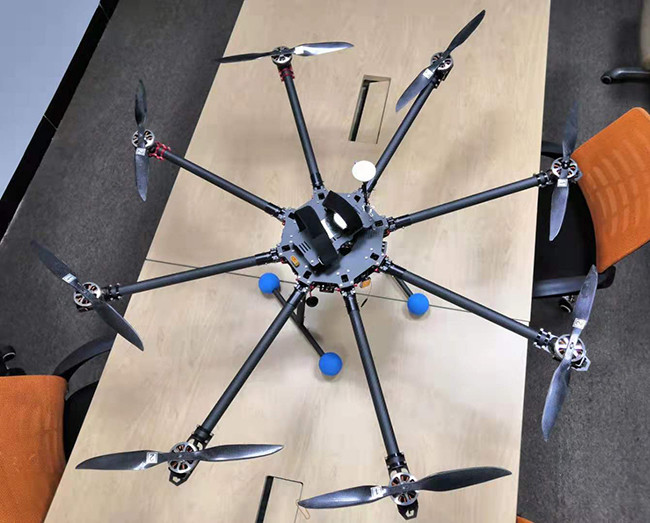

Transmission Line Stringing Tools Professional Drone To String Power Lines

• The size of drone: 680/850/1100/1300mm
• The folding size of the drone: All aluminum folding arm, aluminum made
• The weight of drone: 2-5 kg
• Maximum takeoff weight: 9-12 kg
• The payload of drone: 4-6 kg
• Rotor of drone: 15-28 inch full carbon fiber
• Wiring devices: It can achieve remote control wire
• Remote controller: 2.4G AT9
• Battery of drone: High performance lithium polymer lithium battery; 22.2V/16000mA
• Charger: High-power lithium balance charging equipment
• UAV self-stabilizing system: availble
• Motor speed: 1200r/min
• Battery life without cargo: About 25 minutes
• Battery life with cargo: Within 20 minutes
• Pilot rope: 3.5/2.0 Dupont or Dyneema rope
• Flight altitude: 0-1500m
• Maximum take-off altitude: 4500m
• The approach of taking off and landing: Vertical
• Wind resistance: ≤8.0m/s
• Flight speed: 14m/s
• Hover: It can hovering in the air at any position and return automatically when out of control
• Flight attitude: It can fly in any direction, reverse flight and slam the brakes on
• Hover precision: horizontal±1.5m, vertical±0.5m
• Time for taking off or landing: ≤1min
• Body Material: Carbon fiber
• Temperature range: -20 ~ 50 degrees celsius
• Battery power performance: It can charge-discharge 300-500 times
• Frame life: ≥ 5 years

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
