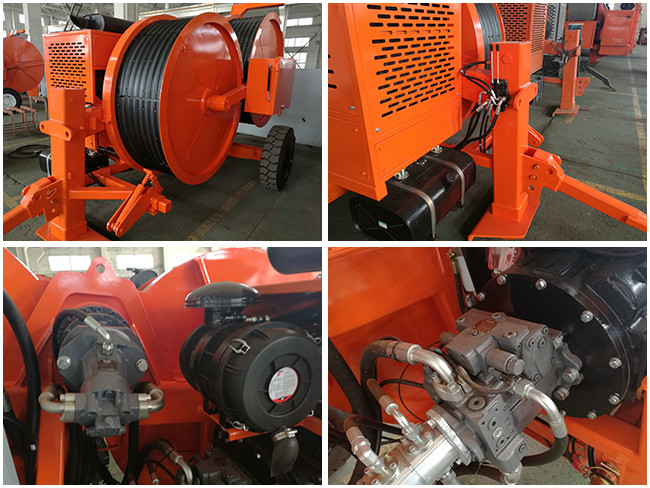

Overhead Line Stringing Equipment TY1x60 Hydraulic Tensioner
Cummins Engine
The machine is hydraulically controlled for the tensile force and
complete with quality parts and components such as hydraulic break,
high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient
performance. The hydraulic power unit provides the traction of
conductors at both positive and negative directions. The
single-beam trailer chassis is also adopted, where lifting points
are pre-set for anchoring and temporary anchoring, to achieve a
portable compact integrity easy to be loaded, transported and
transferred.
Characteristics
| Bull-wheel diameter | 1500mm |
| Max conductor diameter | 40mm |
| Groove width | 65mm |
| Groove number | 6 |
| Total weight | 4800kg |
| Overall dimension (length*width*height) | 4300×2050×2600mm |
Performance
Max intermittent pull:70kN
Max continuous pull: 60kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 35kN
Max reverse pulling force: 50kN
Max reverse pulling speed: 5km/h
Main configuration
Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth
Hydraulic meter: German
Operating handle: German Rexroth
Engine
Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Electric meter counters
Grounding connection point
Additional Devices
Lighting system for the trailer
Hydraulic rope clamp for reel change(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove number | Total weight | Overall damension |
| mm | mm | mm | | kg | mm |
| TY1X7.5 | 1100 | 24 | 21 | 1 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 21 | 5 | 1920 | 4080*1930*2300 |
| TY1X20II | 800 | 23 | | 5 | 950 | 2400*1500*1650 |
| TY1X20III | 800 | 22.5 | | 5 | 1150 | 2500*1500*1700 |
| TY1X30 | 1300 | 40 | 21 | 5 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 21 | 5 | 3430 | 4000*2000*2300 |
| TY1X50 | 1300/1500 | 55 | 21 | 6 | 2400 | 4000*1900*2300 |
| TY140IV | 1500 | 40 | | 16 | 10000 | 5500*2280*2700 |
| TY2X35 | 1300 | 40 | | 2x5 | 4500 | 4300*2250*2700 |
| TY2X40 | 1300/1500 | 40 | | 2x5 | 6230 | 4300*2250*2700 |
| TY2X50 | 1300/1500 | 40 | | 2x5 | 6000 | 4700*2300*2700 |
| TY2X70 | 1700 | 40 | | 2x6 | 7500 | 4700*2300*2700 |
| TY2X90 | 1900 | 50 | | 2x6 | 7500 | 5400*2300*2700 |
| TY4x50 | 1500 | 40 | | 4x5 | 13000 | 5900*2300*2700 |
