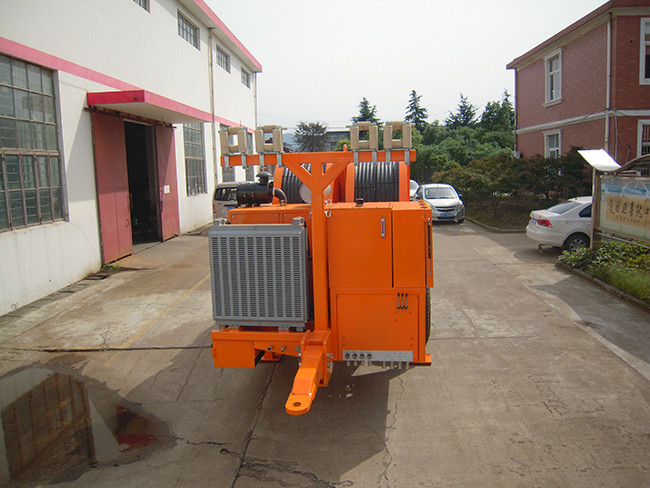

    Four Bundled Conductor Tension TY4x50 Stringing Equipment Hydraulic Tensioner Max Tension 4x50kN

    Ask Lasest Price
    Brand Name : BOYU
    Model Number : TY4x50-23
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 25-35 days
    • Product Details
    • Company Profile

    Four Bundled Conductor Tension TY4x50 Stringing Equipment Hydraulic Tensioner Max Tension 4x50kN

    Tension Stringing Equipment TY4x50 77kw(103hp) 4 Bundled Conductor Hydraulic Tensioner 4x50 (2x100) KN


    Characteristics

    1. Bull-wheel diameter: 1500mm
    2. Max conductor diameter: 40mm
    3. Groove number: 4X5
    4. Total weight: 13000kg
    5. Overall dimension (LxWxH): 5900×2300×2700mm

    Performance

    1. Max tension: 4x50 (2x100) KN
    2. Max continue tension: 4x40(2x80) KN
    3. Speed at max continue tension: 2.5km/h
    4. Corresponding tension: 4x20 (2X40) KN
    5. Max feeding speed: 5km/h
    6. Max reverse pulling force: 4X40kN /2x80kN
    7. Max reverse pulling speed:1.25km/h

    Main configuration

    1. Engine: Cummins
    2. Hydraulic pump: German Rexroth/Dnish Danfoss
    3. Main motor:German Rexroth/French Leduc
    4. Speed reducer: German Rexroth
    5. Hydraulic meter: German
    6. Operating handle: German Rexroth

    Engine

    1. Diesel 77kw(103hp)
    2. Cooling system water
    3. Electrical system 24V​​
    Configuration
    1. Rigid axle for towing at max speed of 30km/h with parking brake
    2. Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
    3. 4 negative self-acting hydraulic brakes
    4. Grounding connection point
    5. 4 hydraulic dynamometers
    6. Hydraulic oil cooling system
    7. 4 digital speed and meters counter
    8. Control instruments for hydraulic system and diesel engine
    9. Hydraulic front and behind stabilizer
    Additional Devices
    1. Lighting system for the trailer
    2. Trailer for towing at max speed of 30 km/h
    3. Air brake system for the trailer
    4. 4 swivel guide rope roller
    5. Digital speed and meter counter
    6. 2 hydraulic behind stabilizers and 1 front sabtilizer
    7. 4 hydraulic conductor clamps for drum change operations (extra change)
    Hydraulic Transmission
    1. The machine can realize step less speed.
    2. The machine is provided with tension presetting system.

    Four Bundled Conductor Tension TY4x50 Stringing Equipment Hydraulic Tensioner Max Tension 4x50kN

    Four Bundled Conductor Tension TY4x50 Stringing Equipment Hydraulic Tensioner Max Tension 4x50kN


    ModelBull-wheel diameterMax conductor diameterMax optical fiber cable diameterGroove widthTotal weightOverall damension
    mmmmmmmmkgmm
    TY1X7.5110024212208502300*1250*1620
    TY1X20130040215519204080*1930*2300
    TY1X20II80023459502400*1500*1650
    TY1X20III80022.55511502500*1500*1700
    TY1X30130040216020643700*1950*2150
    TY1X40130040215534304000*2000*2300
    TY1X501300/150055216824004000*1900*2300
    TY140IV150040100005500*2280*2700
    TY2X3513004045004300*2250*2700
    TY2X401300/15004062304300*2250*2700
    TY2X501300/15004060004700*2300*2700
    TY2X7017004075004700*2300*2700
    TY2x70IV150040100005500*2280*2700
    TY2X9019005075005400*2300*2700
    TY4x50150040130005900*2300*2700
