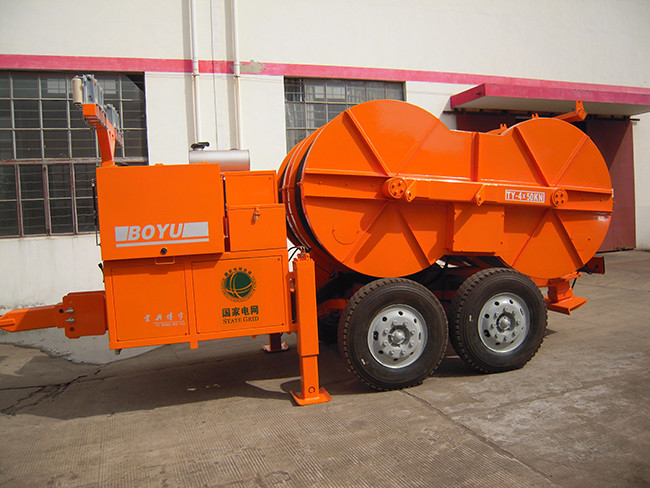

Tension Stringing Equipment TY4x50 Hydraulic Tensioner Engine Cummins

The machine allows for the tension stringing of one,two, three or four-bundle conductor of 630mm²; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Performance

• Max tension: 4x50 (2x100) KN
• Max continue tension: 4x40(2x80) KN
• Speed at max continue tension: 2.5km/h
• Max feeding speed: 5km/h
• Corresponding tension: 4x20 (2X40) KN
• Max reverse pulling force: 4X40kN /2x80kN
• Max reverse pulling speed:1.25km/h

Configuration

• 4 negative self-acting hydraulic brakes
• 4 hydraulic dynamometers
• Hydraulic oil cooling system
• 4 digital speed and meters counter
• Control instruments for hydraulic system and diesel engine
• Rigid axle for towing at max speed of 30km/h with parking brake
• Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
• Hydraulic front and behind stabilizer
• Grounding connection point

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
