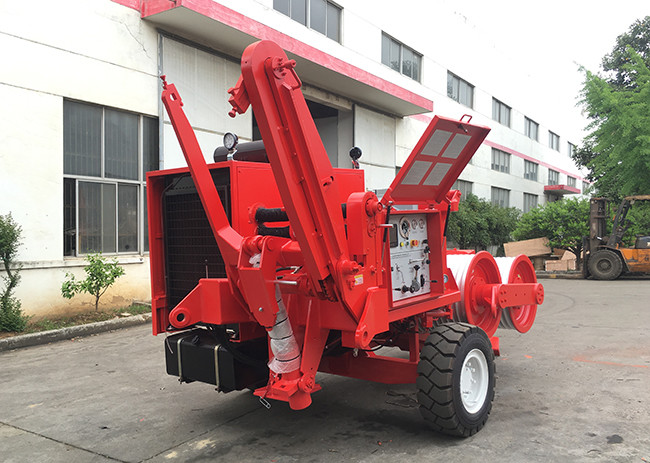

Transmission Line Stringing Equipment Hydraulic Cable Puller With
Electric Starting Engine
Hydraulic cable puller is one of the construction equipment for
erecting aerial High Voltage Transmission Line and laying
Underground Cable/OPGW/ADSS, which can be used to set up tower,
erect guide (ground) lines smoothly & conveniently, such as laying,
traction in various complex conditions .This machine is mainly
equipped with small tension machine, used in the laying of the
traction rope, but also in the case of the cable wire traction.
Main technical performance parameter | Max intermittent pulling force 180 kN Max continuous pulling force 150 kN Speed at max pull 2.5 km/h Max speed 5 km/h Pull at max speed 75 kN |
Engine | Type Cummins 6L8.9AA-C325 Cylinder diameter × stroke 114×144.5 mm Total air output 8.9 L Rated speed 2200 r/min Rated power (one hour power) 239 kw Max torque 1230Nm Rotary speed when maximum torque 1400 r/min Fuel consumption rate (bench test) 225g/kw.h |
Structure parameter | Bull-wheel diameter 750mm Groove number 10 Max diameter of applicable pulling rope 30mm Weight 7800kg Overall dimension (length×width×height) 4800×2350×2550 mm |
Drive system | Closed type circuit hydraulic drive system adjusts speed through
hydraulic plunger pump with bi-directional variable displacement,
reduces speed through planet gear and drives pulling wheels to
rotate in positive and negative directions through the first level
gear terminal drive. |
Cooling mode forced cooling |
Speed reducer Model two-grade planet gear reduction (German Rexroth) Type GFB60T2B24-06 Reduction ratio 34 Brake response pressure 1.8Mpa |
Main pump Model sloping cam plate bi-directional plunger pump (German
Rexroth) Type A4VG250HDDT1/32R |
Hydraulic motor Model inclined-axis bi-directional constant displacement tapered
plunger motor (German Rexroth) Type A2FE160/61W-VZL106 |
Electric system | System voltage 24V Storage battery 6－QA-120(2 pcs) Engine starting 24V electric starting |
Auxiliary oilway hydraulic system | Open type constant displacement throttle speed governing hydraulic
system is supplied oil by gear pump and controls oil liquor’s
cooling and hoisting tail bracket’s lifting of the whole hydraulic
system through hand operated direction valve and ball valve. |
System working pressure 12Mpa Duplex gear pump 1PF2G2-4X/016＋014RR20MRL Fan motor GM5-12-1FE13-S-20 Hoisting motor J2K-305 Sleeve extension oil cylinder 3TG110×250 Radiator B5024 |
Safe operation rules
Only those who are familiar with safe operation rules and
maintenance requirements of the type puller and receive
professional training are allowed to operate the puller.
1. Both operators of tensioner and puller shall communicate each
other to avoid that puller begins to work under operating condition
of tensioner not tension laying and cause serious accident.
2. When puller works, it is prohibited that operators give up
operating or leave puller.
3. When operating puller, you shall control handle and adjust
pressure smoothly and steadily and avoid over-violent and quick
force and brutal operation.
4. Absolutely avoid using backing the machine to brake.
5. After starting puller, check the meter whether it operates
normally; stop to check if abnormal.
6. When the puller works, continuously observe each pointer; water
temperature of engine shall be not more than 95℃; Hydraulic oil
temperature shall be not more than 85℃; Tail bracket hoisting
pressure shall be not more than 14Mpa; Brake pressure shall be not
less than 2Mpa and not more than 4Mpa. Otherwise, the machine shall
be stopped immediately for check.
7. Pressure of each safety valve shall be preset, avoid random
adjustment by all means! If accidents, for example, puller fails to
work, are caused arising from adjusting valve without permission,
it will bring you much trouble and loss.
8. When puller operates, rotary speed of engine keeps above
2000r/min to maintain higher power and prevent overheating of
hydraulic oil.
9. Under operating condition of driving, to change driving
direction of puller shall be carried out after pulling wheels stop
completely.
10. When puller operates, prohibit filling oil and repairing; when
needing repairing, make engine flame out, in addition to reliable
brake.
