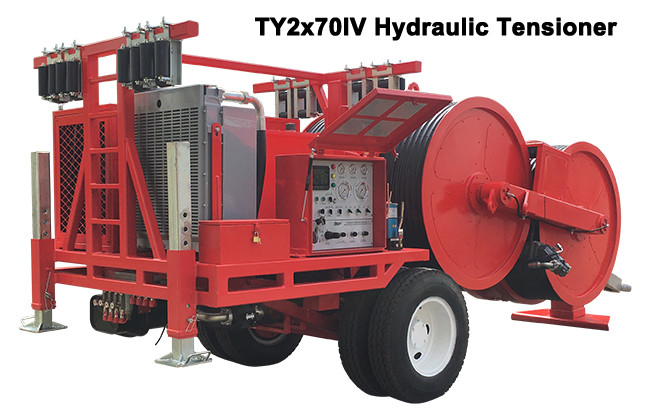

Cable Stringing Equipment TY2x70IV 2x70kN Hydraulic Tensioner

The Emplacement of Tension Machine

• Haul puller into selected field to put; make incoming line groove of pulling wheel aim to rod tower center as much as possible; the deviation range is ±15°to reduce horizontal load.
• Anchoring puller. Center stressing direction of anchor bed shall align with stretch direction of anchor in order to make anchor bear pulling force and not bear lateral force. When anchoring, anchor block, steel wire rope loop, shackle, lifting hoist or double hook with above 5-ton stress shall be used; directly pre-tension the anchor after jointing. Pull out the bolt of end leg and adjust the leg to right position.
• The drum elevator is behind of tensioner into a fan-shaped, 10 meters off the tension machine, one side with brake disc should be putted slower slightly. Anchor the drum elevators.
• Connect oil inlet pipe and return pipe of tail quick coupling to the hydraulic tail vehicle. Attention that clean the dust and other sundry in the connector to prevent them into hydraulic system.

Special Attention:

• The force of the tension machine may be large, so it has particularly high request for ground anchor to ensure the reliability of the ground anchor.
• In mountains and hilly areas, due to the space limitations, the tension machine can’t be in place at the center of the line, it has to be pushed to the right place by manpower. During this process, the potential energy of the machine should be paid particular attention to.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
