2×65kN Cable Stringing Equipment 2.5MPA Hydraulic Tensioner

Ask Lasest Price
Brand Name :	BOYU
Model Number :	TY2x70IV
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100sets/month.
Delivery Time :	15~25 days

Add to Cart

Product Details
Company Profile

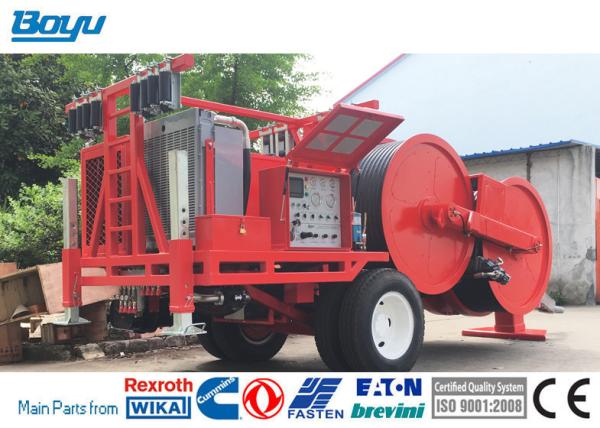

2×65kN Cable Stringing Equipment 2.5MPA Hydraulic Tensioner

Cable Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Tensioner

Performance Parameter

Main technical performance

Tension condition

Max intermittent tension: 2×70kN

Max continuous tension: 2×65kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Tension at max speed: 2X35kN

Traction condition

Max reverse pulling force: 2×60kN

Speed at max pulling force: 2.5km/h

Max reverse pulling speed: 5km/h

Pulling at max speed: 2×30kN

Structure Parameters

Bull-wheel diameter: 1500mm

Groove numbers: 2×8

Max conductor diameter: 40mm

Weight of the whole machine: 10500kg

Overall dimension (length, width, height): 5300X2300X2600

Engine

Model: Cummins 4BT3.9-C105

Nominal speed: 2800r/min

Nominal power (1 hour): 77KW

Electrical System

System voltage: 24V

Storage battery: 6-QA-110

Diesel engine starting: 24V electric starting

Transmission System

With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. hen inverted, the magnitude of reverse traction force is led by exit pressure of pump. In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.

Main pump

Type: Hydraulic control bidirectional variable plunger pump( German Rexroth)

Model: A4VG90HD3

Hydraulic motor

Type: Two-way Quantitative Plunger Piston Motor( German Rexroth)

Model: A2FM90

Speed reducer

Type: planet Gear Decelerator

Model: 307 L2

Reduction ratio: 17.4

Brake opening pressure: 2.5MPA

Characteristics

TY2x70IV Hydraulic Tensioner could deliver or counter-stretch two wires at the same time, tension and traction of every wire could be adjusted separately and seen from manometer directly. Otherwise, one wire could stop or deliver under tension while another wire is counter-stretching and collecting.
TY2x70IV Hydraulic Tensioner adopts planetary reducer from Germany Rexroth, has compact configuration and credible quality.
Friction plate type wet brake is adopted and integrated in planetary reducer, it Can be free from routine maintenance. With spring brake, hydraulic release, simple operation, short reaction time, it can realize gapless braking, it’s safe and reliable. In shutdown mode, all kinds of hydraulic filters have bypass valves to protect the system from damage.
TY2x70IV Hydraulic Tensioner adopts hydraulic motor from Germany Rexroth and compose double-circuit hydraulic transmission system. It has advanced technology, high transmission efficiency and credible quality and could save power.
