Tension Stringing Equipment Hydraulic Tensioner Max Tension 4x50KN

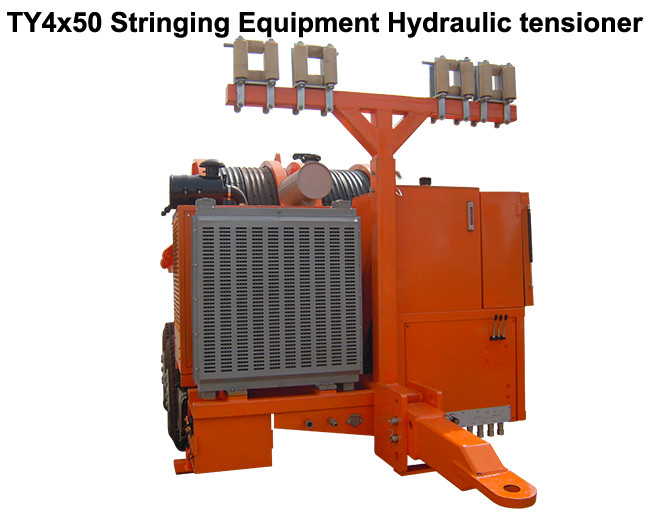

TY4x50 Hydraulic Tensioner |
The machine allows for the tension stringing of one, two, three or
four-bundle conductor of 630mm2; besides, it can be used for
tension stringing of OPGW or ADSS optical cable and 500kV haulage
rope in various terrains |
Characteristics |
Bull-wheel diameter | 1500mm |
Groove number | 4X5 |
Max conductor diameter | 40mm |
Total weight | 13000kg |
Overall dimension (LxWxH) | 5900*2300*2700mm |
Performance |
Max tension | 4x50(2x100) KN |
Max continue tension | 4x40(2x80)KN |
Speed at max continue tension | 2.5km/h |
Max feeding speed | 5km/h |
Corresponding tension | 4x20(2x40)KN |
Max reverse pulling force | 4x40kN /2x80kN |
Max reverse pulling speed | 1.25km/h |
Main configuration |
Engine | Cummins |
Hydraulic pump | German Rexroth/Dnish Danfoss |
Main motor | German Rexroth/French Leduc |
Speed reducer | German Rexroth |
Hydraulic meter | German WIKA |
Operating handle | German Rexroth |
Engine |
Diesel | 77kw(103hp) |
Cooling system | water |
Electrical system | 24V |
|
Hydraulic Transmission |
The machine can realize step less speed. |
The machine is provided with tension presetting system. |
|
Configuration |
4 negative self-acting hydraulic brakes |
4 hydraulic dynamometers |
Hydraulic oil cooling system |
4 digital speed and meters counter |
Control instruments for hydraulic system and diesel engine |
Rigid axle for towing at max speed of 30km/h with parking brake |
Hydraulic power pack to control up to 4 separate drum stands with
hydraulic motor |
Hydraulic front and behind stabilizer |
Grounding connection point |
|
Additional Devices |
Lighting system for the trailer |
Air brake system for the trailer |
4 hydraulic conductor clamps for drum change operations (extra
change) |
Digital speed and meter counter |
2 hydraulic behind stabilizers and 1 front sabtilizer |
4 swivel guide rope roller |
Trailer for towing at max speed of 30 km/h |
Customer support
Customer is our first priority
Our contact person will do the best to deal with the problems our
customers encountered, in order to ensure our customers'
satisfaction and without any commitment from your side. An
introduction course has been planned for all the customers that buy
BOYU machines, we provide free technical support by means of phone
or mail. Also our customers can download operation and maintenance
videos from our website.
We will provide some easily damaged parts of the equipment to
ensure the normal operation.
If any quality problems such as design, manufacture, function or
procedure occur within the guarantee period, BOYU shall take full
responsibility and bear all the economic losses incurred.
If any other quality problems occurs within the guarantee period,
BOYU shall provide online video service after receive the buyer’s
notice in 24 hrs.
If any big quality problems occurs out of the guarantee period,
BOYU will also provide online video service after receive the
buyer’s notice in 48 hrs.
BOYU will provide a lifetime favorable price to the buyer with the
materials and spare parts used in system operation, equipment
maintenance, and guarantee 7days courier door by door.
