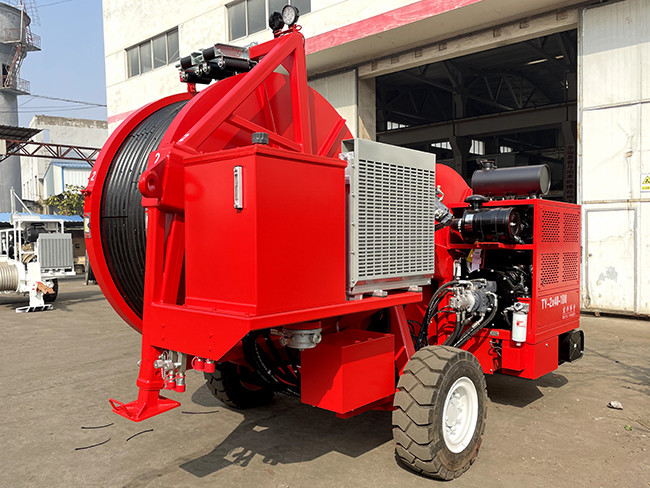

24V Electric Starting Hydraulic Cable Tensioner For Transmission Line

Ask Lasest Price
Brand Name :	BOYU
Model Number :	TY2x40-1800
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100sets/month.
Delivery Time :	15~25 days

Add to Cart

Product Details
Company Profile

24V Electric Starting Hydraulic Cable Tensioner For Transmission Line

Hydraulic Cable Tensioner For Transmission Line 24V Electric Starting

Main technical performance

Tension condition
Deliver the two wires (or steel wires) at the same time	Maximum discontinuous tension	2×50KN
	Maximum continuous tension	2×40KN
	Corresponding speed	2.5Km/h
	Maximum continuous payout speed	5Km/h
	Corresponding tension	2X20KN
Deliver one wire (or steel wire) in two juxtaposed wheels	Maximum continuous tension	80KN
	Corresponding speed	2.5Km/h
	Maximum continuous payout speed	5Km/h
	Corresponding tension	40KN

Traction condition
Deliver one wire or steel wire not in two juxtaposed wheels (single wheel traction)	Maximum traction force	40KN
	Corresponding speed	1.5Km/h
	Maximum continuous payout speed	5Km/h
	Corresponding tension	20KN
Deliver one wire or steel wire in two juxtaposed wheels	Maximum tension	80KN
	Corresponding speed	1.5Km/h
	Maximum continuous payout speed	5Km/h
	Corresponding tension	40KN

Engine
Model	Cummins 4BT3.9
Nominal speed	2800r/min
Nominal power (1 hour)	77KW

Structure Parameters
Diameter of tensile force wheel	1800mm
Concave-groove numbers	5
Maximum applicable diameter of wire	40mm
Deadweight of the whole machine	7800kg
Overall dimension (length, width, height)	4900X2310X2900
Slinging method	double point slinging

Transmission System
With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. With inversion, the magnitude of reverse traction force is led by exit pressure of pump. In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.
Main pump
Type	Hydraulic control bidirectional variable plunger pump(Germany Rexroth )
Model	A4VG71HD
Hydraulic motor
Type	Two-way Quantitative Plunger Piston Motor (Germany Rexroth )
Model	A2FE63/61W
Speed reducer
Type	planet Gear Decelerator
Model	306L2 18.1
Reduction ratio	18.1
Brake opening pressure	1.8MPA

24V Electric Starting Hydraulic Cable Tensioner For Transmission Line

The Emplacement of Tension Machine

1. Haul puller into selected field to put; make incoming line groove of pulling wheel aim to rod tower center as much as possible; the deviation range is ±15°to reduce lateral load.

2. Anchoring puller. Center stressing direction of anchor bed shall align with stretch direction of anchor in order to make anchor bear pulling force and not bear lateral force. When anchoring, anchor block, steel wire rope loop, shackle, lifting hoist or double hook with above 5-ton stress shall be used; directly pre-tension the anchor after jointing. Pull out the bolt of end leg and adjust the leg to right position.

3. The drum elevator is behind of tensioner into a fan-shaped, 10 meters off the tension machine, one side with brake disc should be putted slower slightly. Anchor the drum elevators.

4. Connect oil inlet pipe and return pipe of tail quick coupling to the hydraulic tail vehicle. Attention that clean the dust and other sundry in the connector to prevent them into hydraulic system.

Main technical performance
Tension condition
Deliver the two wires (or steel wires) at the same time
Maximum discontinuous tension	2×50KN
Maximum continuous tension	2×40KN
Corresponding speed	2.5Km/h
Maximum continuous payout speed	5Km/h
Corresponding tension	2X20KN
Deliver one wire (or steel wire) in two juxtaposed wheels
Maximum continuous tension	80KN
Corresponding speed	2.5Km/h
Maximum continuous payout speed	5Km/h
Corresponding tension	40KN
Traction condition
Maximum traction force	40KN
Corresponding speed	1.5Km/h
Maximum continuous payout speed	5Km/h
Corresponding tension	20KN
Deliver one wire or steel wire in two juxtaposed wheels
Maximum tension	80KN
Corresponding speed	1.5Km/h
Maximum continuous payout speed	5Km/h
Corresponding tension	40KN
Structure Parameters
Diameter of tensile force wheel	1800mm
Concave-groove numbers	5
Maximum applicable diameter of wire	40mm
Deadweight of the whole machine	7800kg
Overall dimension (length, width, height)	4900X2310X2900
Slinging method	double point slinging
Engine
Model	Cummins 4BT3.9
Nominal speed	2800r/min
Nominal power (1 hour)	77KW
