Name: TYDBK36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor
Brand: BOYU
Price: 1 USD

Add to Cart

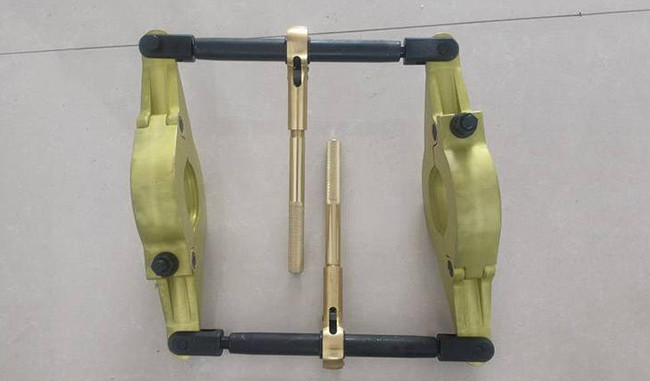

Transmission Line Stringing Tools TYDBK-36 Aluminum Alloy Insulator Replacement Tool

TYDBK Insulator Replacement Tool
The closed card is designed for 10-1000KV potential or power failure to replace the porcelain bottle. It is mainly used for any piece of porcelain bottle in the tension-resistant porcelain bottle string or straight-line porcelain bottom string. Tighten the broken porcelain bottle string on both sides, loosen the middle one and replace it at the same time, and then release the two tightened porcelain bottles. Either the job can be done or the end clamps can be produced.
Applicable: porcelain bottle insulator; glass insulator Tools should be used when using: canceller (sold separately) Front and rear hanging points: steel cap.
Model	Rated load (KN)	Ordinary insulator type (KN)	Voltage class (KV)	Fixture center distance (mm)	Screw stroke (mm)	Main material
TYDBK-30	30	70	10~35	350~380	220	Aluminum alloy
TYDBK-36	36	100	35~110	380~400	220	Aluminum alloy
TYDBK-42	42	160	110~220	400~420	420~620	Aluminum alloy
TYDBK-46	46	210	110~220	420~440	450~720	Aluminum alloy
TYDBK-80	80	300	220~330	420~500	480~720	Aluminum alloy
TYDBK-100	100	400	220~500	480~520	480~720	Aluminum alloy
TYDBK-125	125	420	220~500	480~520	480~720	Aluminum alloy
TYDBK-150	150	550	500~1000	540~600	480~750	Aluminum alloy

TYDBK-36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor
