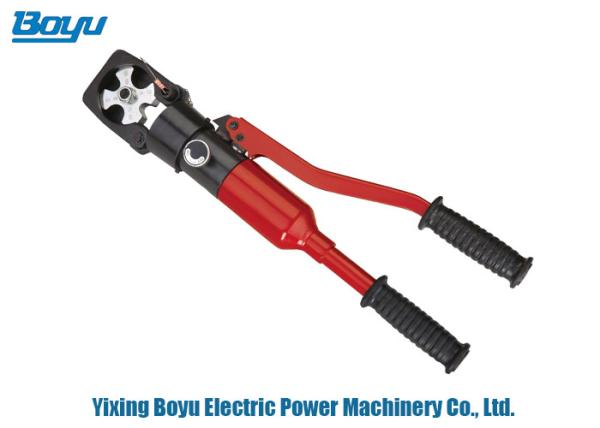

17mm Stroke Hydraulic Transmission Line Tool Cable Terminate Crimping

Ask Lasest Price
Brand Name :	Boyu
Model Number :	TYCPO-150S
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	5000sets/month.
Delivery Time :	15~25 days

Add to Cart

Product Details
Company Profile

17mm Stroke Hydraulic Transmission Line Tool Cable Terminate Crimping

Transmission Line Tool Hydraulic Cable Terminate Crimping Tools

Hydraulic crimping tool is a professional tool for crimping copper and aluminum lugs, with different types. The main crimping shape is hexagon. Special shapes design is provided.

General Features:

For interchangeable dies, Crimping head, rotates 180°

Two stages hydraulics

With safety valve inside

Manual retract in case of need

Safety Valve Inside

Model	TYZCO-300	TYZCO-400	TYZYO-400	TYCYO-300C	TYFKO-240A	TYCPO-150S	TYYQH-240	TYZHO-240	TYZHO-300
Crimping range	16-300 mm2	16-400 mm2	16-400 mm2	16-300 mm2	16-240 mm2	8-150 mm2	16-240 mm2	16-240 mm2	16-300 mm2
Crimping force	100KN	120KN	120KN	120KN	100KN	100KN	60KN	100KN	100KN
Crimping type	Hexagon	Hexagon	Hexagon	Hexagon	Hexagon	Hexagon	Hexagon	Hexagon	Hexagon
Stroke	16mm	32mm	16mm	32mm	16mm	17mm	13mm	16mm	16mm
Length	540mm	540mm	540mm	540mm	540mm	approx 540mm	470mm	540mm	540mm
Weight	5kg	6.5kg	5.5kg	6.2kg	4.8kg	4.8kg	3.0kg	4.5kg	4.5kg
Package	Plastic case	Plastic case	Plastic case	Plastic case	Plastic case	Plastic case	Plastic case	Plastic case	Plastic case
Standard accessories	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2	50, 70, 95, 120, 150, 185, 240, 300, 400 mm2	50, 70, 95, 120, 150, 185, 240, 300, 400 mm2	35, 50, 70, 95, 120, 150, 185, 240, 300 mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2	Male: 8-38, 60-150mm2 Female: 14-22, 38-60, 70-80, 100-150 mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2

17mm Stroke Hydraulic Transmission Line Tool Cable Terminate Crimping

Product Tags:

17mm stroke transmission line tool

cable terminate crimping transmission line tool

17mm stroke hydraulic lug crimping tool

17mm Stroke Hydraulic Transmission Line Tool Cable Terminate Crimping
