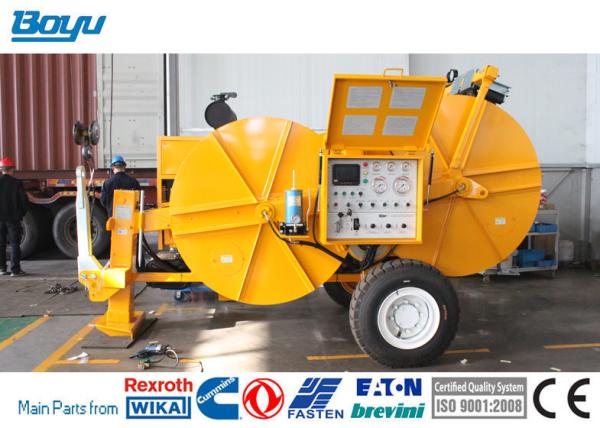

TY2x35 Stringing Equipment Hydraulic Tensioner Water Cooling System
| Performance |
| Max intermittent pull | 2x40kN |
| Max continuous pull | 2x35kN |
| Speed at max pull | 2.5km/h |
| Max speed | 5km/h |
| Pull at max speed | 2x20kN |
| Max reverse pulling force | 2x30kN |
| Max reverse pulling speed | 5km/h |
| Characteristics |
| Bull-wheel diameter | 1300mm |
| Max conductor diameter | 40mm |
| Groove number | 2x5 |
| Total weight | 4500kg |
| Overall dimension (length*width*height) | 4300*2250*2700mm |
| Main configuration |
| Engine | Cummins |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth / Italy Brevini |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Engine |
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electrical system | 24V |
| Hydraulic Transmission |
| The machine can realize step less speed. |
| The machine is provided with tension presetting system. |
| Configuration |
| Hydraulic dynamometers |
| Hydraulic oil cooling system |
| Digital speed and meter counter |
| Grounding connection point |
| Hydraulic power pack to control up to 2 separated drum stands with
hydraulic motor |
| Additional Devices |
| Lighting system for the trailer |
| Air brake system for the trailer (extra charge) |
| 2 hydraulic conductor clamps for drum change operations (extra
charge) |
| Swivel guide rope roller |
