Max Continuous Tension 30 Kn Hydraulic Tensioner Cable Stringing Equipment

Ask Lasest Price
Brand Name :	Boyu
Model Number :	TY1x30D-1800
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100sets/month.
Delivery Time :	15~25 days

Add to Cart

Product Details
Company Profile

Max Continuous Tension 30 Kn Hydraulic Tensioner Cable Stringing Equipment

Cable Stringing Equipment Max Continuous Tension 30kN Hydraulic Tensioner

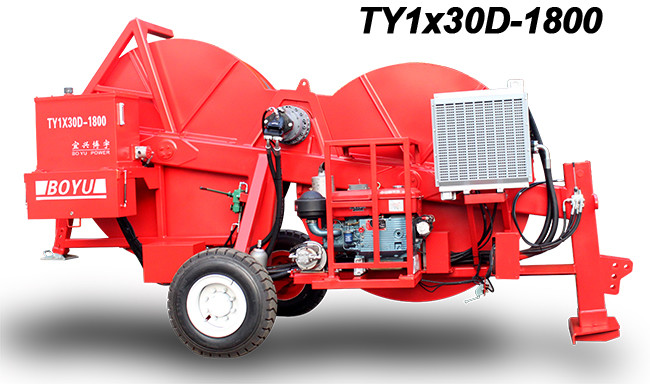

TY1x30D-1800

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.

The hydraulic power unit provides the traction of conductors at both positive and negative directions.

The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Performance

Max continuous tension: 30kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 15kN

Max reverse pulling force: 20kN

Characteristics

Bull-wheel diameter: 1800mm

Max conductor diameter: 40mm

Groove number: 5

Total weight: 3200kg

Overall dimension (length*width*height): 4500*2000*2500mm

Main configuration

Engine: Single cylinder diesel engine

Hydraulic pump: Tianjin Parker

Main motor: Tianjin Parker

Speed reducer: German Rexroth / Italy Brevini

Hydraulic meter: German

Engine

Single cylinder diesel engine: 18kw(25hp)

Electrical system: 12V

Hydraulic Transmission

The machine can realize step less speed

The machine is provided with tension presetting system

Additional Devices

Air brake system for the trailer (extra charge)

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Grounding connection point

Max Continuous Tension 30 Kn Hydraulic Tensioner Cable Stringing Equipment

Model	Bull-wheel diameter	Max conductor diameter	Groove width	Groove number	Total weight	Overall damension
Model	mm	mm	mm		kg	mm
TY1X7.5	1100	24	220	1	850	230012501620
TY1X20	1300	40	55	5	1920	408019302300
TY1X20II	800	23	45	5	950	240015001650
TY1X20III	800	22.5	55	5	1150	250015001700
TY1X40	1300	40	55	5	3430	400020002300
TY1X50	1300/1500	55	68	6	2400	400019002300
TY140IV	1500	40		16	10000	550022802700
TY2X35	1300	40		2x5	4500	430022502700
TY2X40	1300/1500	40		2x5	6230	430022502700
TY2X70	1700	40		2x6	7500	470023002700
TY2x70IV	1500	40		2x8	10000	550022802700
TY2X90	1900	50		2x6	7500	540023002700
