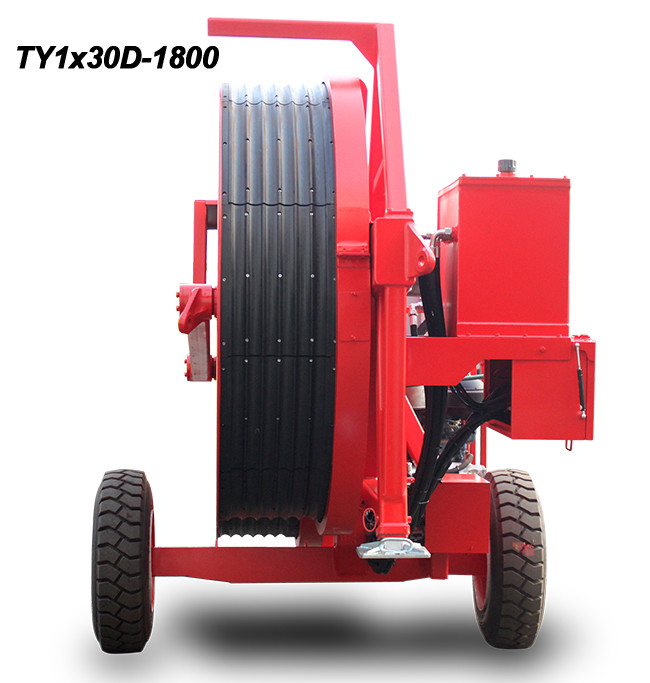

Cable Stringing Equipment TY1x30D-1800 Hydraulic Tensioner With Diesel Engine

TY1x30D-1800

Hydraulic Tensioner with Diesel Engine

• The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
• The hydraulic power unit provides the traction of conductors at both positive and negative directions.
• The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Performance

• Max continuous tension: 30kN
• Speed at max tension: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 15kN
• Max reverse pulling force: 20kN

Characteristics

• Bull-wheel diameter: 1800mm
• Max conductor diameter: 40mm
• Groove number: 5
• Total weight: 3200kg
• Overall dimension (length*width*height): 4500*2000*2500mm

Main configuration

• Engine: Single cylinder diesel engine
• Hydraulic pump: Tianjin Parker
• Main motor: Tianjin Parker
• Speed reducer: German Rexroth / Italy Brevini
• Hydraulic meter: German

Engine

• Single cylinder diesel engine: 18kw(25hp)
• Electrical system: 12V

Hydraulic Transmission

• The machine can realize step less speed
• The machine is provided with tension presetting system

Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Grounding connection point

Additional Devices

• Air brake system for the trailer (extra charge)
• Hydraulic conductor clamps for drum change operations (extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 30 km/h

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
