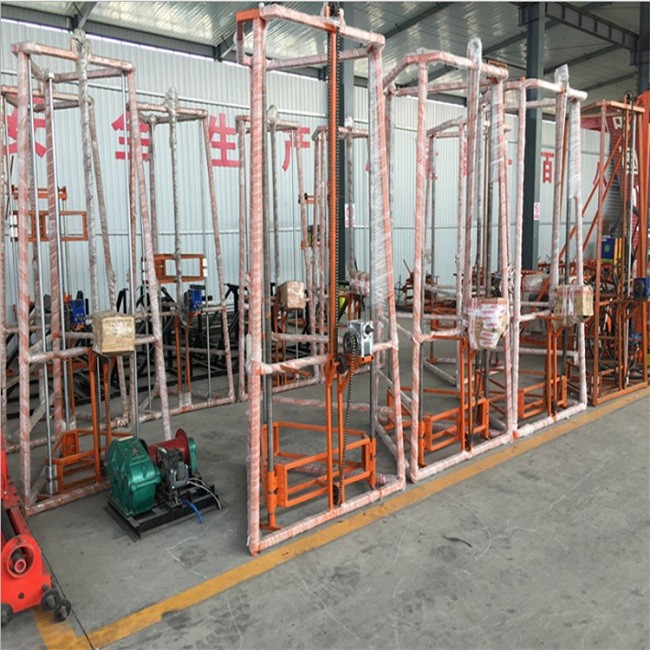

Transmission Line Stringing Tools High-Power Petrol Tripod Digging
Machine
1) The ground auger is widely used for planting digging in the
seedling garden greening projects on slope, sand, and hard land,
the peripheral unearthed of digging up big trees, digging holes of
fence buried pile, fertilization burrowed of fruit trees,
intertilling and weeding of landscaping projects, etc.
(2) The ground auger digs not less than 80 pits/h, and can dig 640
pits one day counted by 8 working hours, that is, it works more
than 30 times as much as manual work.
(3) For intertilling and weeding, the digging width is greater than
50 centimeters, and the area is not less than 800 square meters/h,
really accomplishing full automatic operation process.
Feature
1. Efficient: Powerful excavation power, pits with a diameter of
10-50cm and a depth of 80cm-2.5m can be completed in about 10-5
minutes, with an efficiency over a hundred times that of ordinary
manual excavation methods;
2. Easy to operate: One operator of the excavator can complete
various excavation and drilling tasks for soil pits;
3. High quality of operation: High strength drill bits are used,
and anti torsion and tensile spiral drill rods are positioned at
the foot of the mountain and four corners. The excavated soil pit
is straight and solid, with a small amount of soil in the pit, and
the depth can reach 80-250 centimeters;
4. Strong practicality: This type of equipment has strong off-road
performance, and can be used well in complex terrains such as hills
and mountains. It can work on most terrains such as loess layers,
clay layers, and soil layers containing pebbles and gravel;
5. Wide range of use: This equipment can be widely used in power
and telecommunications engineering, municipal engineering, green
tree planting engineering, building construction engineering, solar
photovoltaic power generation engineering, etc;
6. The equipment has a small volume and is suitable for use in
narrow spaces
| Parameter |
| Model | | P-BG-T07 |
| Drilling depth | mm | 2500-2650 |
| Drilling tower height | mm | 2200-2500 |
| Max drilling diameter | mm | 400 |
| Optic axis diameter | mm | 25 |
| Optic axis quantity | root | 3 |
| Gasoline engine model | | 170F | 190F |
| displacement | Ml | 212 | 420 |
| Power | Kw | 4 | 8.5 |
| Gasoline engine type | | Single cylinder 4 stroke |
| Cool type | | Air cool |
| Rated speed | r/min | 3600 |
| Max torque | N·M | | |
| Fuel tank capacity | L | 3.6 | 6 |
| Gasoline | | 92# |
| Weight | Kg | 180 | 200 |
| Reduction box ratio | | 1:10 |
| Reduction box weight | Kg | 17 |
| Start type | | Hand start |
| Transfer motion type | | Reducer optical axis chain drive |
| Gasoline packing size | mm | 510×410×470 | 660×600×970 |
| Drilling machine packing type | | Thickening thin film |
