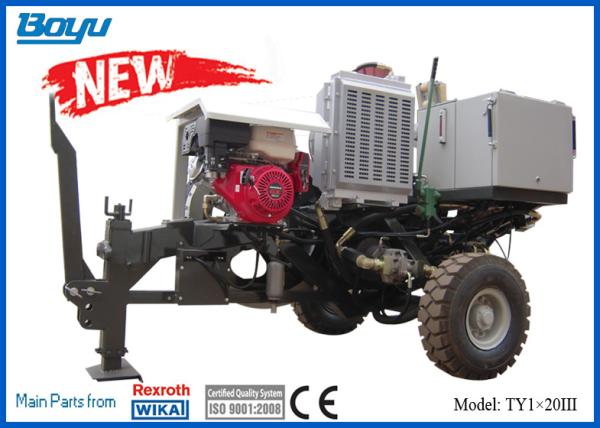

20kN Overhead Line Equipment Hydraulic Tensioner Honda Gasoline
Engine 800mm Bull Wheel Speed Reducer German Rexroth
Quick details:
1.Tension Stringing Equipment
2.Max Continuous Pull 20kN Hydraulic Tensioner
3.Main parts Rexroth
4.Max tension 1X20kN
5.Engine Honda
6.Max speed: 5km/h
7.Boyu Brand
Use of the max continuous pull 20kN tensioner :
The machine is hydraulically controlled for the tensile force and
complete with quality parts and components such as hydraulic break,
high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient
performance. The hydraulic power unit provides the traction of
conductors at both positive and negative directions. The
single-beam trailer chassis is also adopted, where lifting points
are pre-set for anchoring and temporary anchoring, to achieve a
portable compact integrity easy to be loaded, transported and
transferred.
Characteristics Bull-wheel diameter: 800mm Max conductor diameter: 22.5mm Groove width: 55mm Groove number: 5 Total weight: 1150kg Overall dimension (length*width*height): 2500*1500*1700mm | Performance Max continuous pull: 20kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 10kN Max reverse pulling force: 15kN |
Main configuration Engine: Japan Honda Hydraulic pump: Tianjin Parker Main motor: Tianjin Parker Speed reducer: German Rexroth Hydraulic meter: German | Engine Honda GX390: 9.8KW/3600rpm
|
Configuration Hydraulic dynamometers Hydraulic oil cooling system Grounding connection point |
More pictures of the 20kn hydraulic tensioner
Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is
located in west side of the beautiful and fertile Taihu Lake. Near
Shanghai seaport and Nanjing airport.
Our company is high-tech enterprise of Jiangsu province having six
patents, including two invention patents. Our company has a total
area of 42800 square meters.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd.
is a manufacturer specialized in the research, development and
production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a
High-tech enterprise in Jiangsu Province, with convenient
transportation access. All of our products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich
experience in this field. Our product sells in distant markets:
Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc.
Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go
wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost
price after warranty period.
