Cummins 298kw 280KN Hydraulic Wire Puller With German Rexroth Pump Reducer and Motor

Quick details:

1.Transmission Line Stringing Equipment
2. 280KN Hydraulic Wire Puller
3. Max pull: 280kN
4. Corresponding pulling force: 120KN
5. Engine: Cummins 298kw
6. Main pump & Reducer: German Rexroth
7. Operating handle: German Rexroth
8. Boyu Brand

Structure parameter

Puller wheel diameter: 960mm
Groove number: 11

Electric systerm: 24V
Max diameter of applicable wire coil: 1600mm
Total weight: 12800kg
overall dimension (length*width*height): 5800×2500×2850mm
Max diameter of applicable steel wire rope : 38mm
Max diameter of coupling : 100mm

TY280-1 Hydraulic Puller

This machine is mainly applied in long-span and mountainous areas
and foothills for tension stringing of 4 bundle conductor of 500kV or twin bundle conductor of 220kV
and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.

Performance parameter

Max intermittent pulling force : 280KN
Max continous pulling force: 250KN
Max continous pulling speed: 5km/h
Corresponding pulling force: 120KN

Corresponding speed: 2.5km/h

Main configurations
Engine:Cummins
Main pump: German Rexroth
Main moterspeed reducer : German Rexroth
Operating handle: German Rexroth
Hydraulic meter: German

Tail bracket hoisting motor: American Eton

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur

Additional Devices

1. Lighting system for the trailer
2. Air brake system for the trailer
3. Trailer for towing at max speed of 30 km/h
4. Extra shaft
5. Digital speed and meter counter
6. Hydraulic rope clamp for reel change(extra charge)
7. Swivel guide rope roller

Company instruction

Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.



Our service

Quality, loyalty and service is our faith!

1.Deemed continuous improvement as our permanent pursuits.

2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.

3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.

4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.

5. 24-hour hot line: 86-0510-80329270. Once receive the customer’s enquiry , we will response within 24 hours.

6.Do the best 280KN Hydraulic Wire Puller Transmission Line Stringing Equipment in China.

Work site

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

Company

Workshop

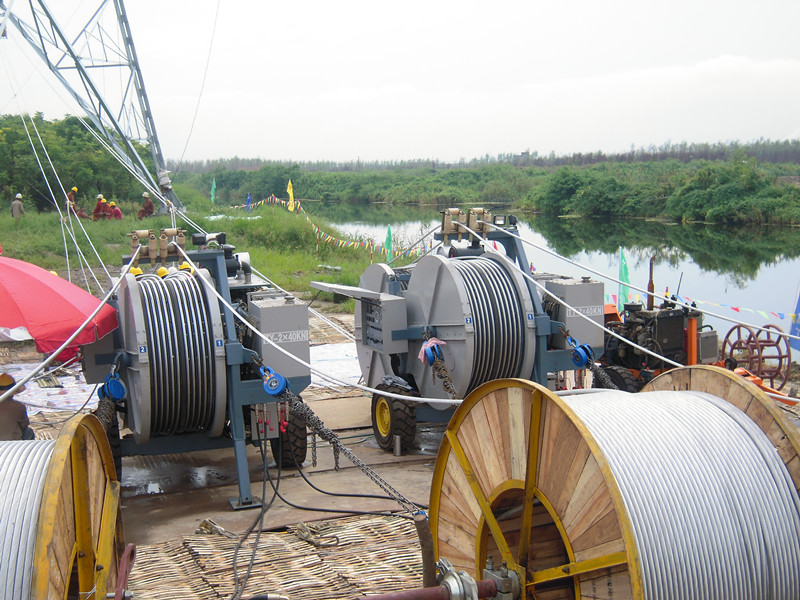

Construction Site
