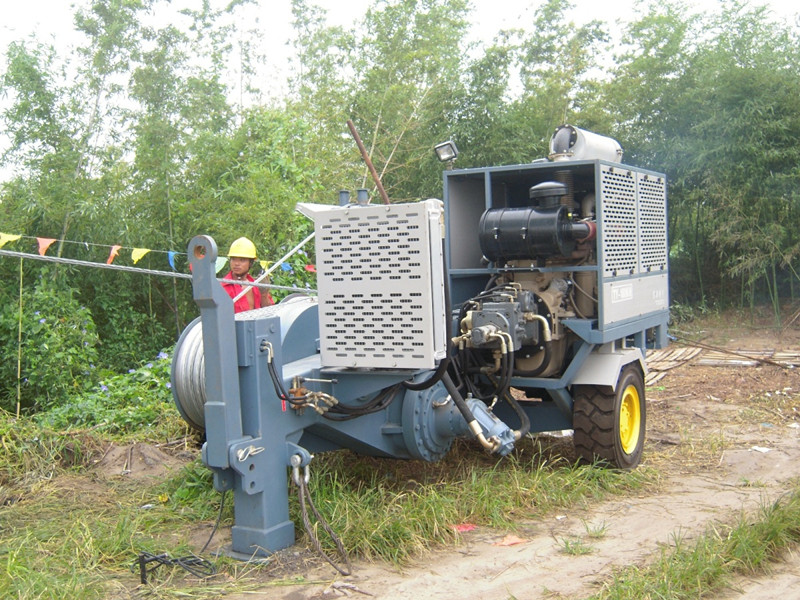

190KN Stringing Hydraulic Cable Laying Puller Transmission Line Stringing Equipment

Quick details:

1.Transmission Line Stringing Equipment
2.190KN Stringing Hydraulic Cable Laying Puller
3. Max pull: 190kN
4. Engine: Cummins
5. Main Parts from: German Rexroth
6. German

7. Operating handle: German Rexroth

8. Boyu Brand

Use:

The machine allows for the tension stringing of 4-bundle conductor of 630mm2
and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2
and below in flat lands; besides,
it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Performance parameter

Max intermittent pulling force :190KN
Max continous pulling force:180KN
Corresponding speed:2.5km/h
Max continous pulling speed:6km/h
Corresponding pulling force:75KN

Structure parameter

Puller wheel diameter:750mm
Groove number:10
Max diameter of applicable steel wire rope :28mm
Electric systerm:24V
Max diameter of applicable wire coil:1400mm
Total weight:6700kg
overall dimension:5000x2300x2500mm

Main comfigurations

Engine:Cummins

Operating handle: German Rexroth
hydraulic pump:German Rexroth
Main moter:German Rexroth
Speed reducer :German Rexroth
Hydraulic meter: German

Additional Devices

1. Lighting system for the trailer
2. Hydraulic rope clamp for reel change(extra charge)
3. Swivel guide rope roller
4. Trailer for towing at max speed of 30 km/h
5. Extra shaft
6. Digital speed and meter counter

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur

Company instruction

Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.



Work site



Customer visting



1.Deemed continuous improvement as our permanent pursuits.
2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.
3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
5.Once receive the customer’s enquiry , we will response within 24 hours.
6.Do the best 180KN Stringing Hydraulic Cable Laying Puller in China.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
